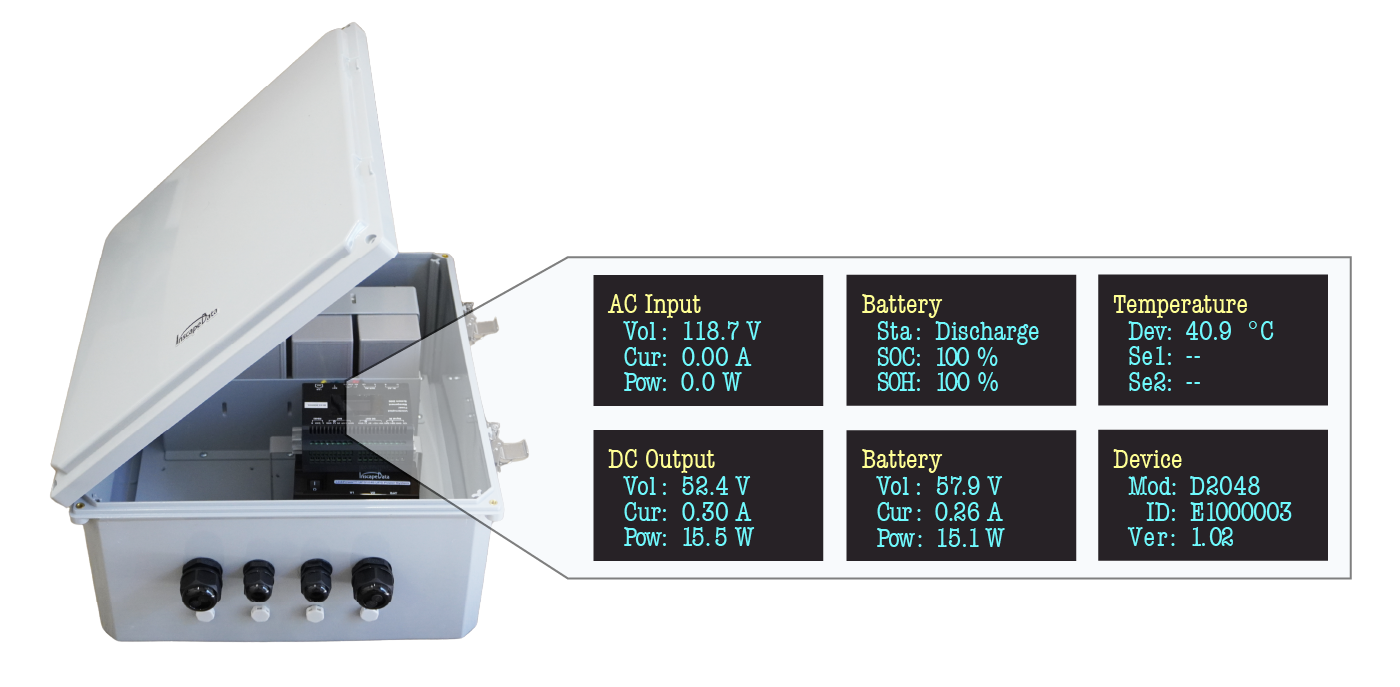

LinkPower™ UPS1048V2
Outdoor UPS Systems

Complete outdoor power and networking systems with battery backup, power management, and industrial PoE switching for critical applications.

1 or More
PoE Switches

Multiple Battery
Capacities

AGM or LFP
Options

3 LinkPower™
UPS Systems

Managed or
Unmanaged

Battery Configurations

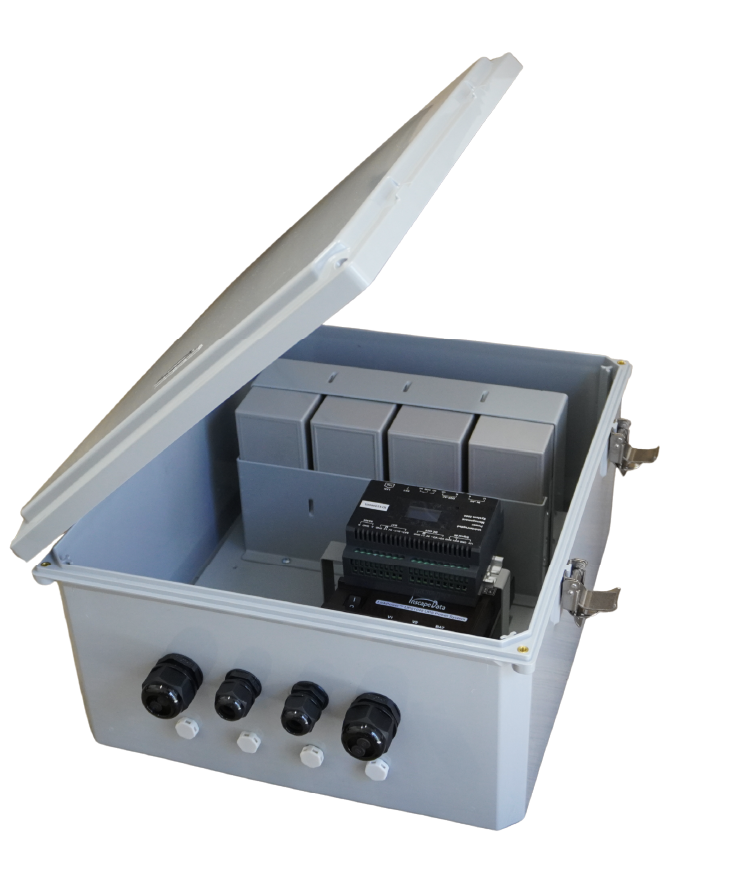

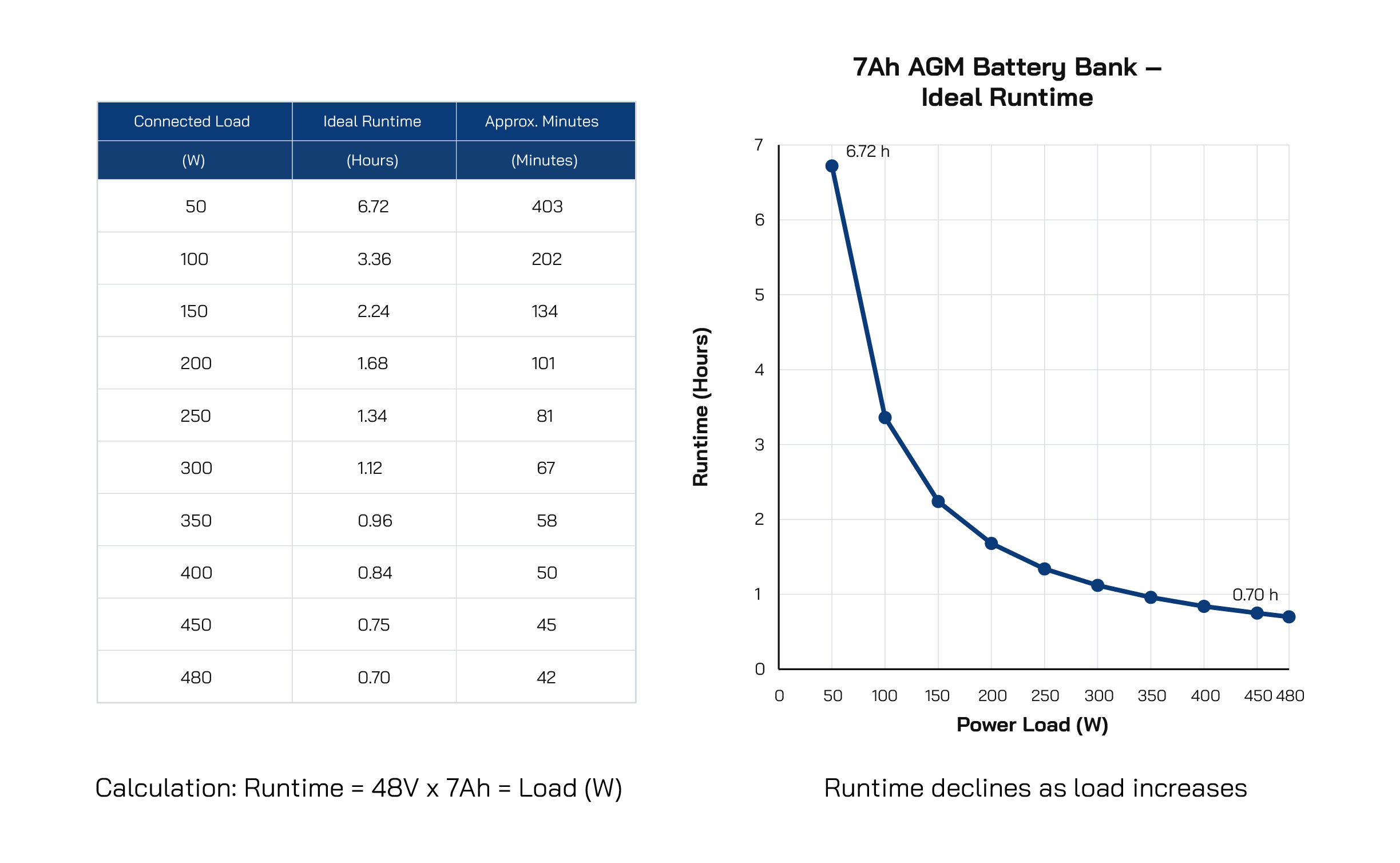

UPS1048V2 AGM7

7Ah AGM Batteries

Small or Medium Enclosure • 7Ah AGM battery pack
• Compact footprint
• Ideal for smaller deployments

View Product Datasheet

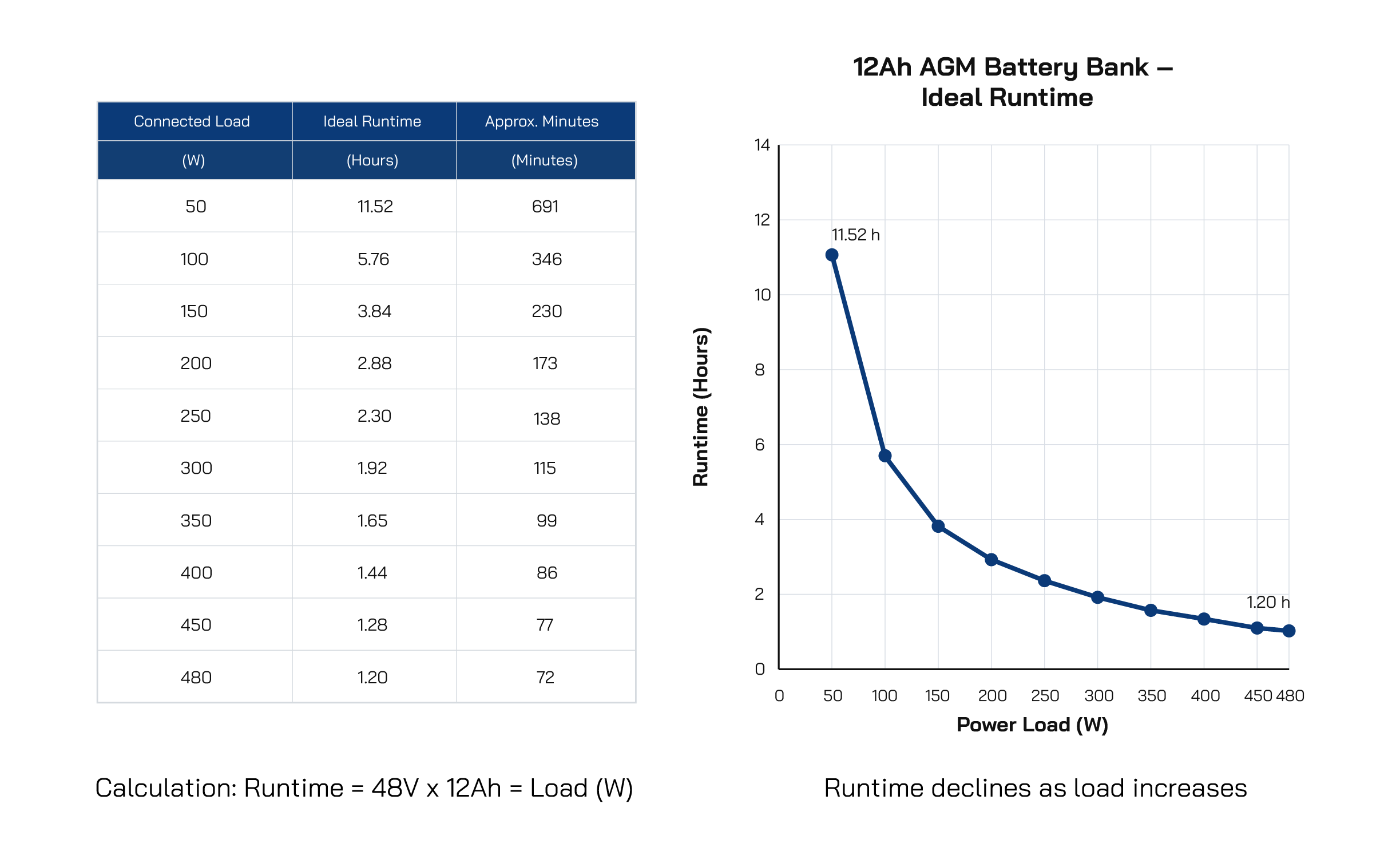

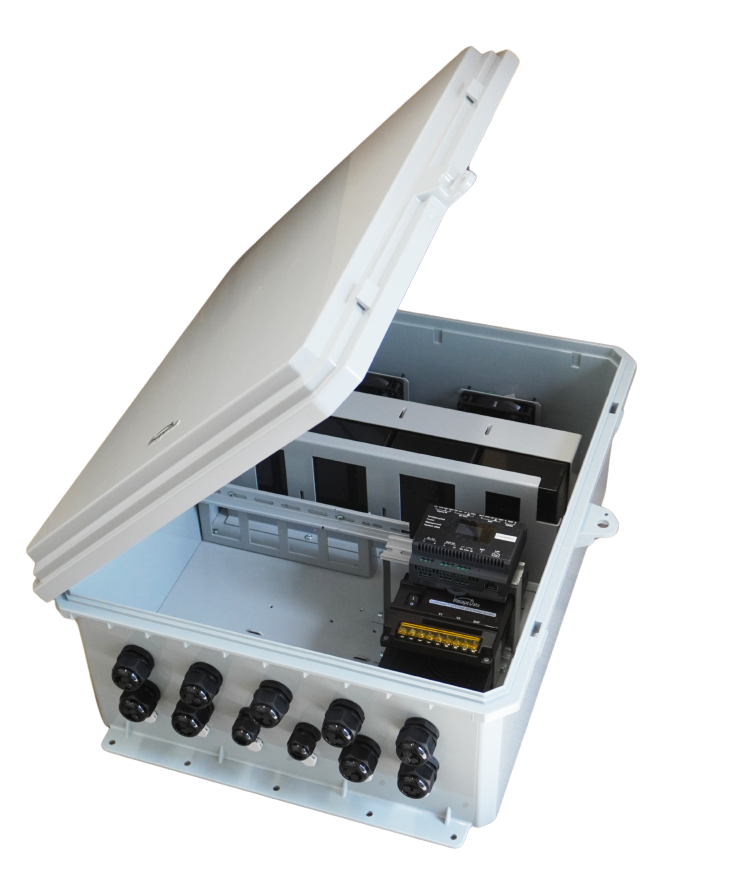

UPS1048V2 Pro AGM12

12Ah AGM Batteries

Medium Enclosure • 12Ah AGM battery pack
• Proven AGM technology
• Great balance of runtime and value

View Product Datasheet

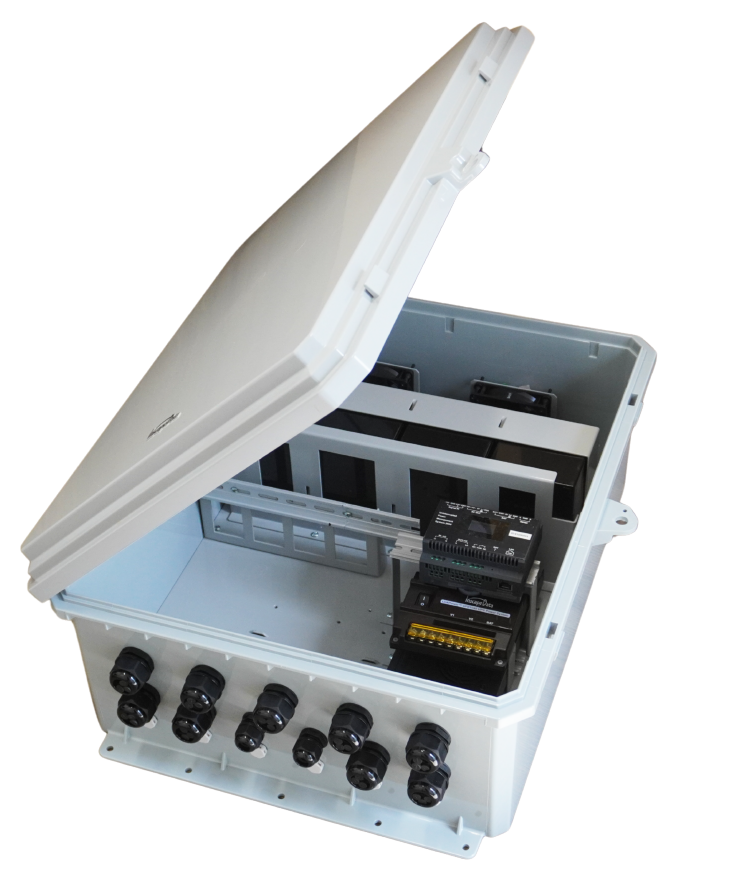

UPS1048V2 Pro LFP12

12Ah LFP Batteries

Medium Enclosure • 12Ah LFP battery pack
• Longer life, more cycles
• Better performance in extreme conditions

View Product Datasheet

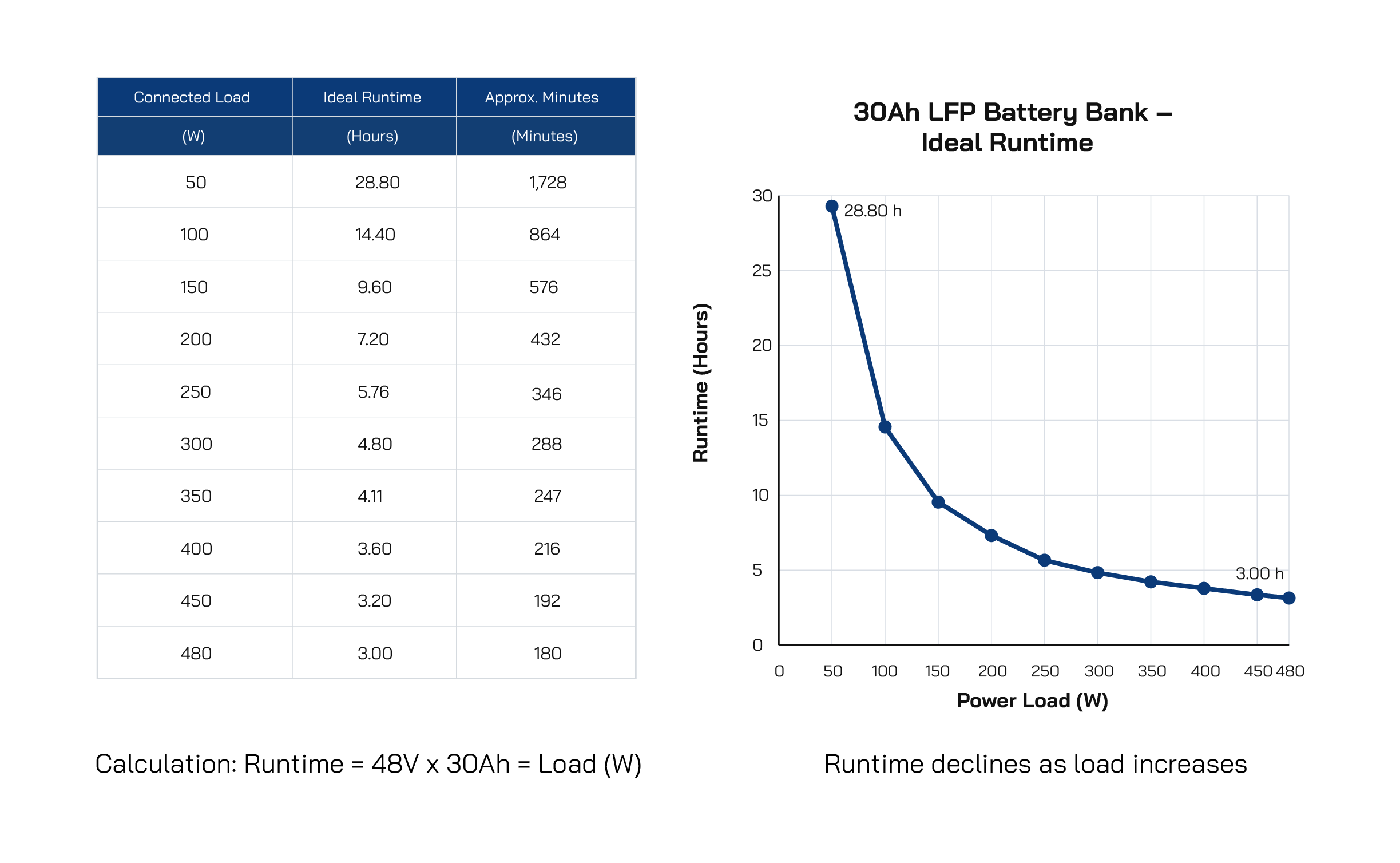

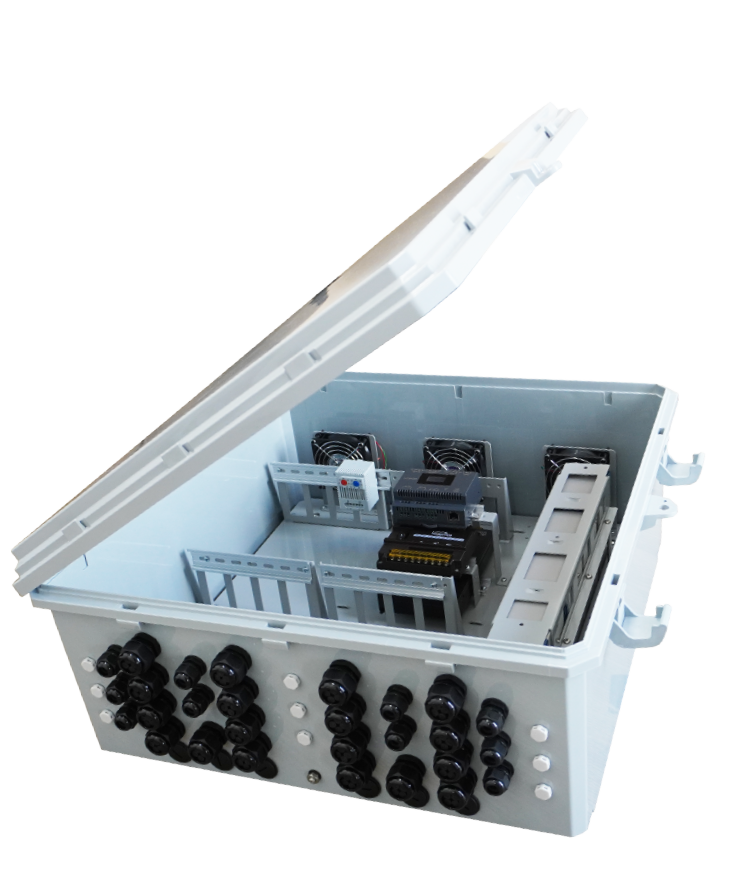

UPS1048V2 Pro LFP30

30Ah LFP Batteries

Medium Enclosure • 30Ah LFP battery pack
• Maximum runtime
• Best for demanding applications

View Product Datasheet

LinkPower™ UPS Systems

All LinkPower™ UPS Systems are IP68, NEMA 4/4X rated and built for harsh outdoor environments.

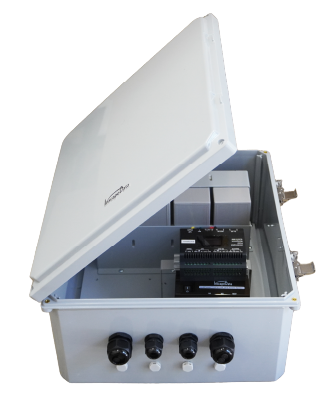

Small UPS System

16 x 14 x 7 in

Compact installation footprint
Available with the 7Ah AGM systems only
Designed for small system configurations (1 industrial PoE switch)

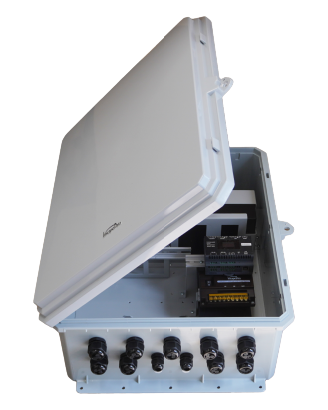

Medium UPS System

21 x 17 x 9 in

Additional room for networking equipment
Available with the 7Ah and 12Ah battery systems
Designed for medium system configurations (≤ 2 industrial PoE switches)

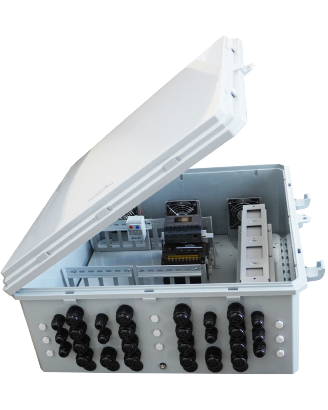

Large UPS System

24 x 24 x 10 in

Additional room for networking equipment
Available with the 7Ah and 12Ah battery systems
Designed for large system configurations (≤ 4 industrial PoE switches)

UPS system selection does not change the battery capacity or UPS performance. The medium and large UPS systems provide additional internal space for PoE switches, networking equipment and installation accessories.

Battery & UPS System Compatibility

Battery Configuration	Small UPS System 16 x 14 x 7 in	Medium UPS System 21 x 17 x 9 in	Large UPS System 24 x 24 x 10 in
7Ah AGM (UPS1048V2 AGM7)
12Ah AGM (UPS1048V2 Pro AGM12)	—
12Ah LFP (UPS1048V2 Pro LFP12)	—
30Ah LFP (UPS1048 Pro LFP30)	—

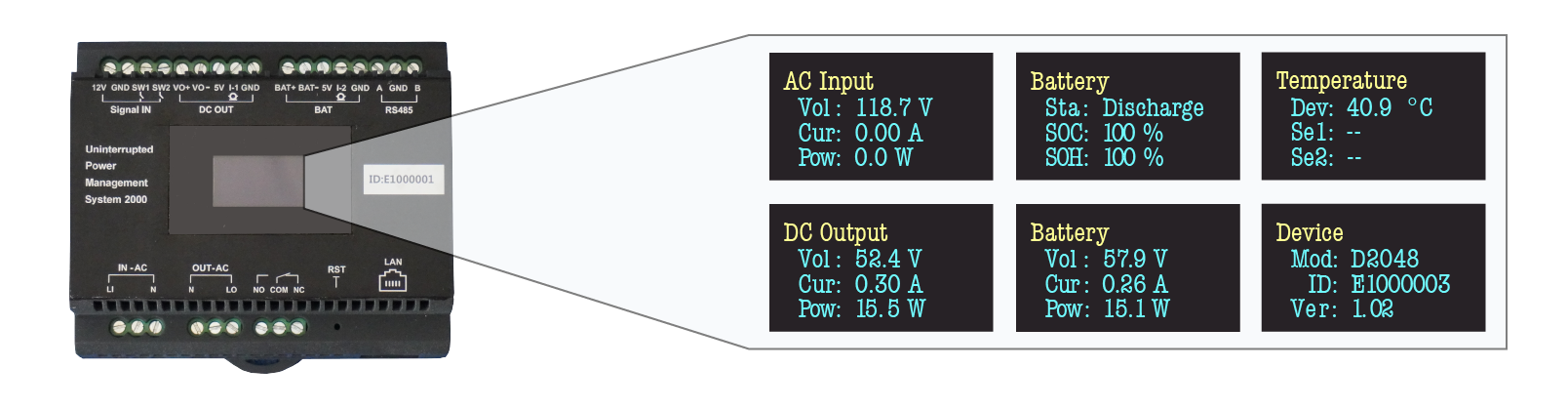

Optional Remote Management System

Add the UPMS2000 for complete visibility and control of your UPS system.

Remote monitoring and management
Instant alerts and notifications
Runtime and battery health reporting
Web-based interface, anywhere access

Datasheet

Compatible Industrial PoE Switches

Add up to 4 industrial managed PoE switches depending on the UPS System selection.

LPS3400ATM

4 PoE ports
& 2 SFP uplinks
802.3at, PoE+

View Switch

LPS3400ATMP

4 PoE ports
& 2 SFP uplinks
802.3bt, PoE+

View Switch

LPS3802ATM

8 PoE ports
& 2 SFP uplinks
802.3at, PoE+

View Switch

LPS3802ATMP

8 PoE ports
& 2 SFP uplinks
802.3bt, PoE++

View Switch

LPS3800ATM

8 PoE ports,
2 RJ45 & 4 SFP uplinks
802.3at, PoE+

View Switch

LPS6844ATM

8 PoE ports,
4 RJ45 & 4 SFP+ uplinks
802.3at, PoE+

View Switch

LPS7844ATM

8 PoE ports,
4 RJ45 & 4 SFP+ uplinks
802.3at, PoE+

View Switch

LPS10868ATMP

8 2.5G PoE ports,
4 SFP+ uplinks
802.3at, PoE+

View Switch
