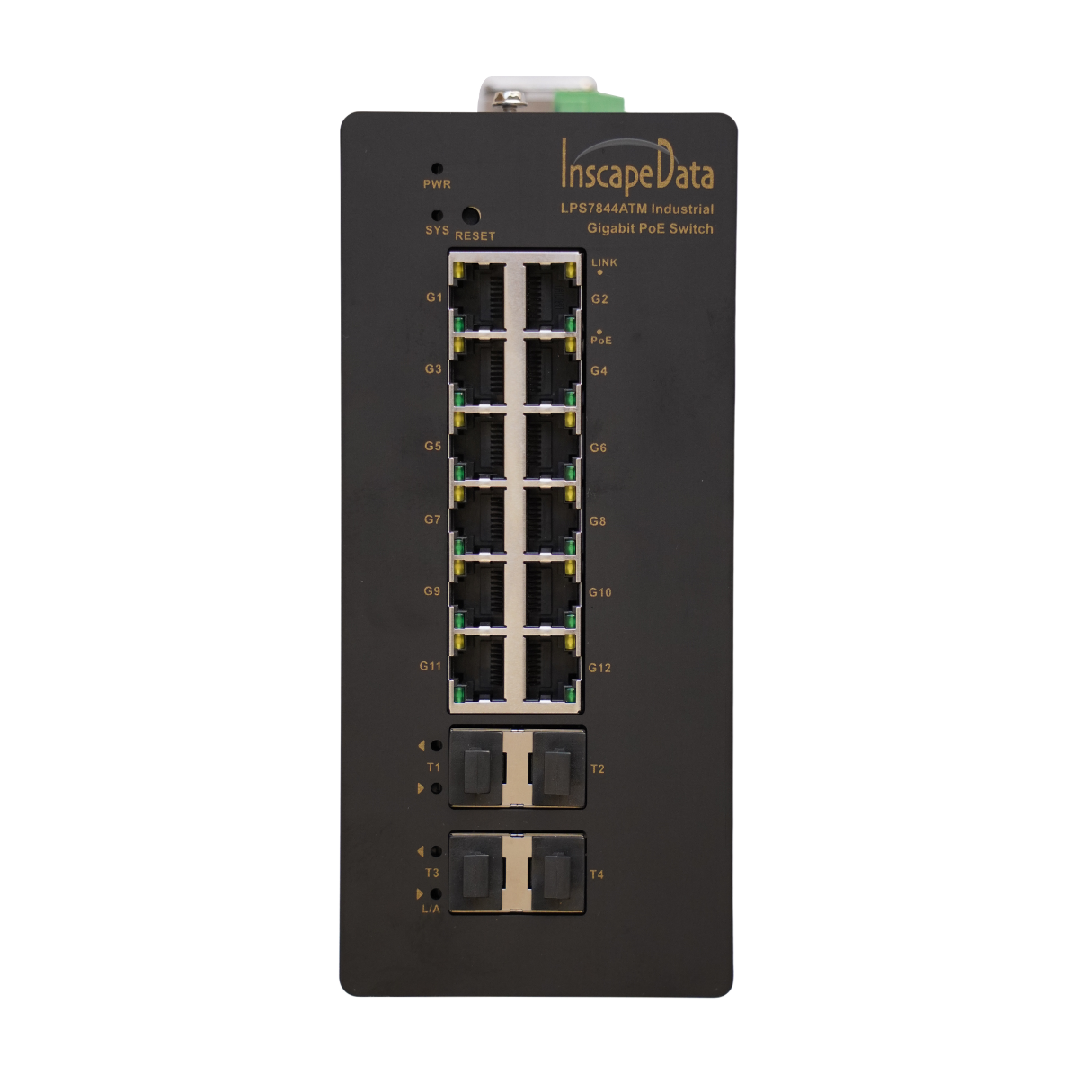

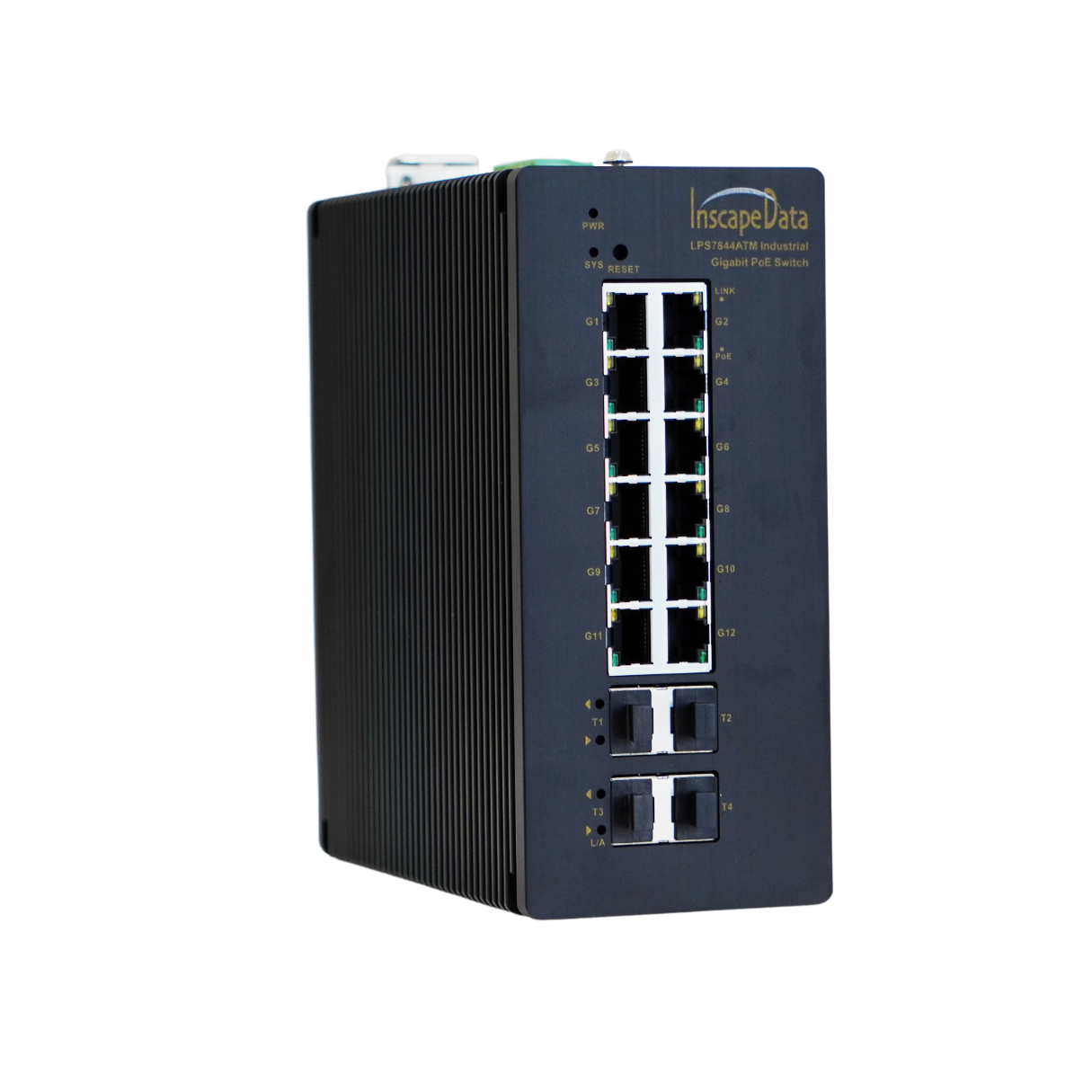

LinkPower™ LPS7844ATM
L3 Managed Industrial Gigabit PoE Switch

The LinkPower™ LPS7844ATM-T1 is a robust Layer 3 Managed DIN Rail Industrial PoE Switch designed to meet the demands of high-performance, enterprise-grade networks operating in outdoor and harsh industrial environments. Ideal for complex network infrastructures requiring routing capabilities at the edge, this switch offers powerful Layer 3 functionality for dynamic routing, network segmentation, and advanced traffic control.

With 8 Gigabit PoE ports (IEEE 802.3af/at compliant) and 4 high-speed 10Gb SFP+ uplink ports, the LPS7844ATM-T1 provides high-capacity switching and backhaul support for applications such as IP surveillance, multi-site wireless coverage, smart city projects, and large-scale automation networks. Each PoE port supports up to 30W, delivering reliable power and data to cameras, access points, and other critical devices.

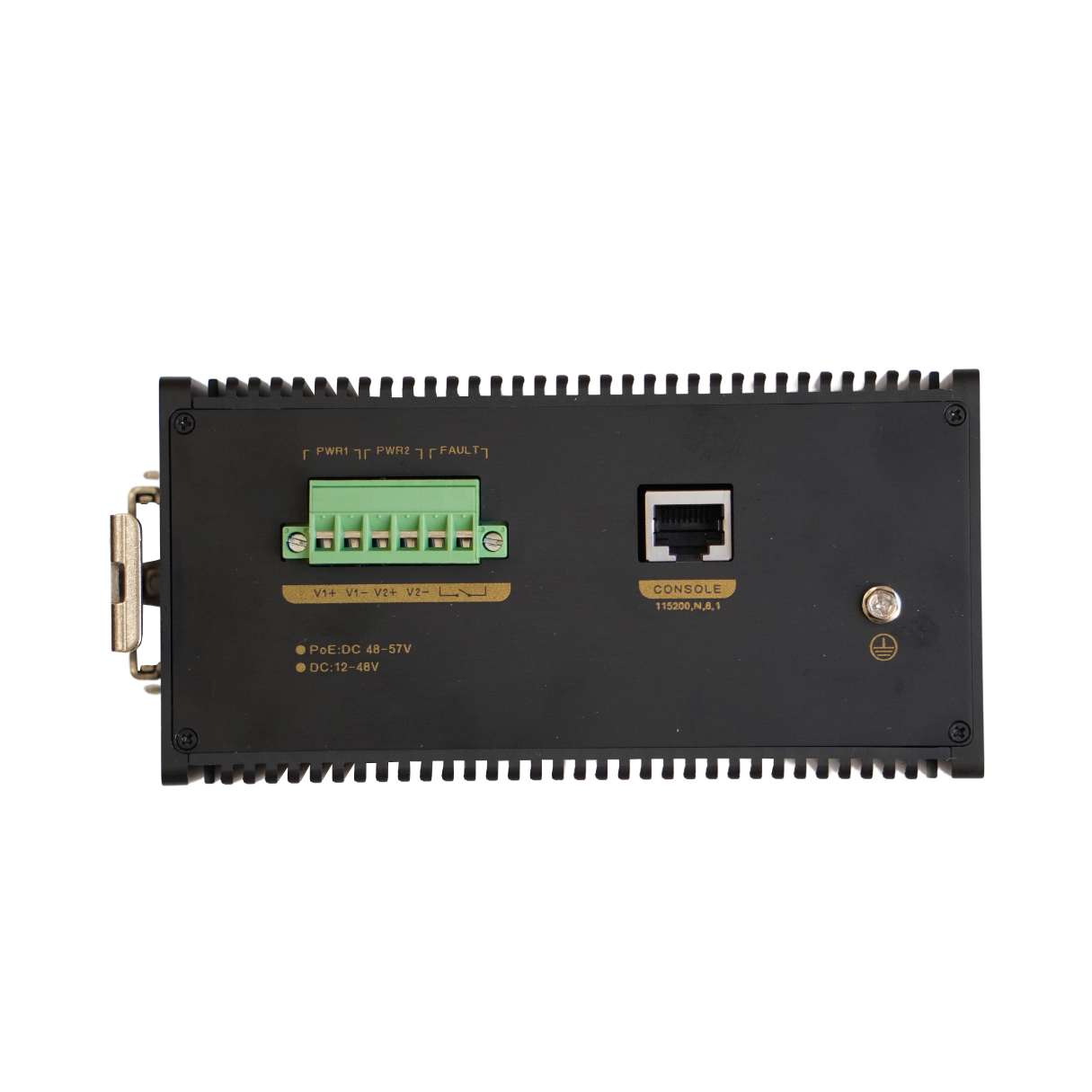

Built with redundant 48–57V DC power inputs, this unit ensures network continuity in the event of power failure, while its 368 Gbps switching capacity enables full wire-speed forwarding across all ports. The LPS7844ATM-T1 also supports Jumbo Frames up to 9.6KB for efficient transmission of large data packets. Its advanced Layer 3 features include static routing, RIP, and OSPF, allowing for inter-VLAN routing and improved traffic flow between network segments. Security and management features like 802.1Q VLAN, port security, ACLs, ARP inspection, and PoE configuration per port are enhanced by authentication options such as RADIUS, TACACS+, and 802.1x.

The switch is easily managed via WEB GUI, CLI, Telnet, or SNMP, making it an excellent choice for IT administrators seeking advanced routing control and visibility in distributed network environments.
