LinkPower™ LPS3802ATM
L2+ Managed Industrial Gigabit PoE Switch
Inscape Data’s LinkPower™ LPS3802ATM is an Industrial 10-port Layer 2+ DIN Rail Full Managed PoE (Power over Ethernet) Switch, and it offers 8-Port Gigabit PoE and 2 SFP Uplink Ports with dual power input redundancy, i.e., 48~57V DC. LPS3802ATM offers the rich L2+ management features you need to manage your critical PoE applications, reduceyour overall installation cost, and optimizes your network bandwidth to deliver infor- mation and applications more efficiently and reliably. It provides the ideal combination of manageability and PoE capability for the next-level commercial network and enterprise applications, all of which demand concen- trated network bandwidth and high PoE power capability. With the Gigabit transmission, you will be increasing bandwidth for higher performance and quickly transferring large amounts of triple-play services across networks.

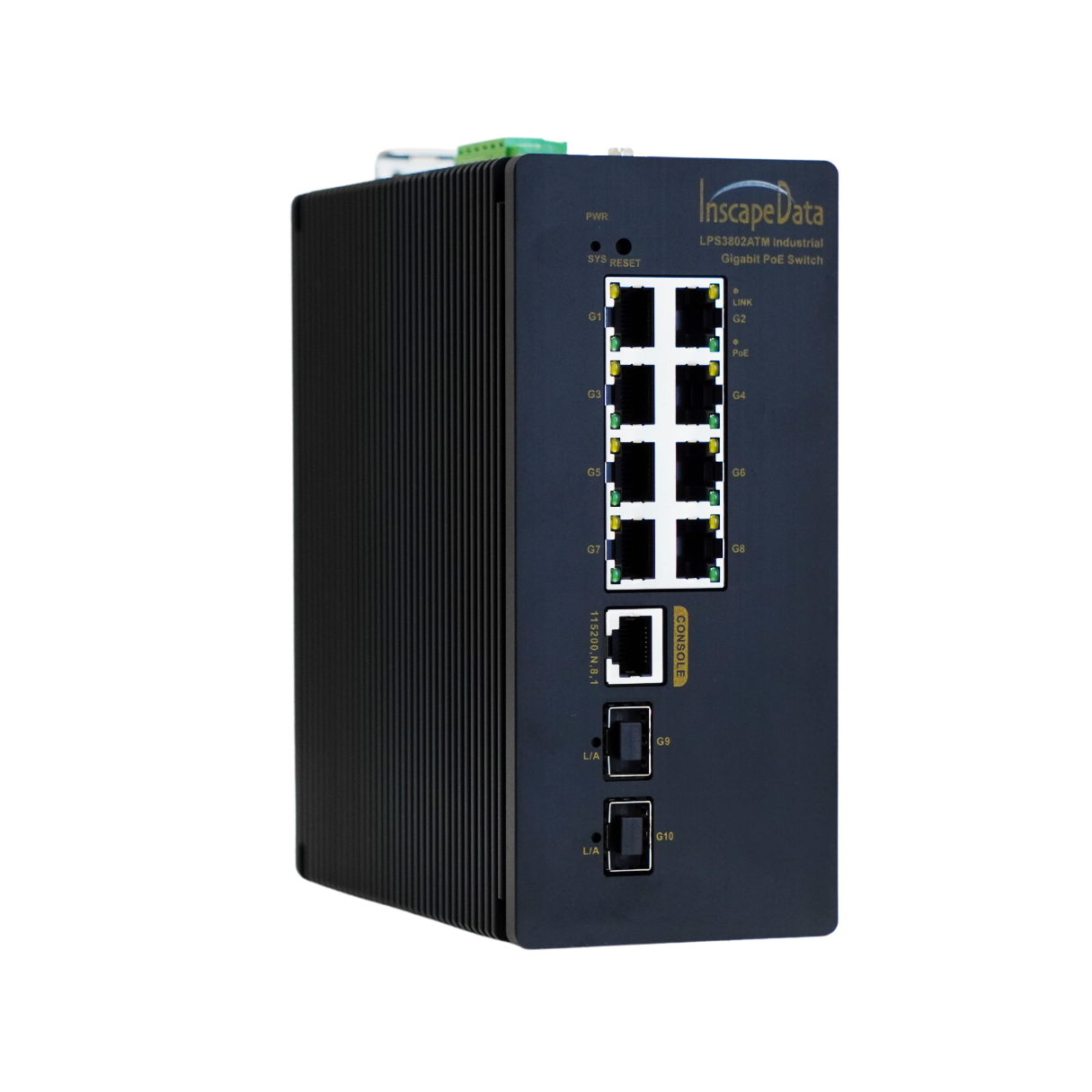

- 8 × 10/100/1000Base-T PoE+ ports, 2 × 1000Base-X SFP uplinks
- IEEE 802.3af/at compliant, up to 30W per port, 240W total PoE budget

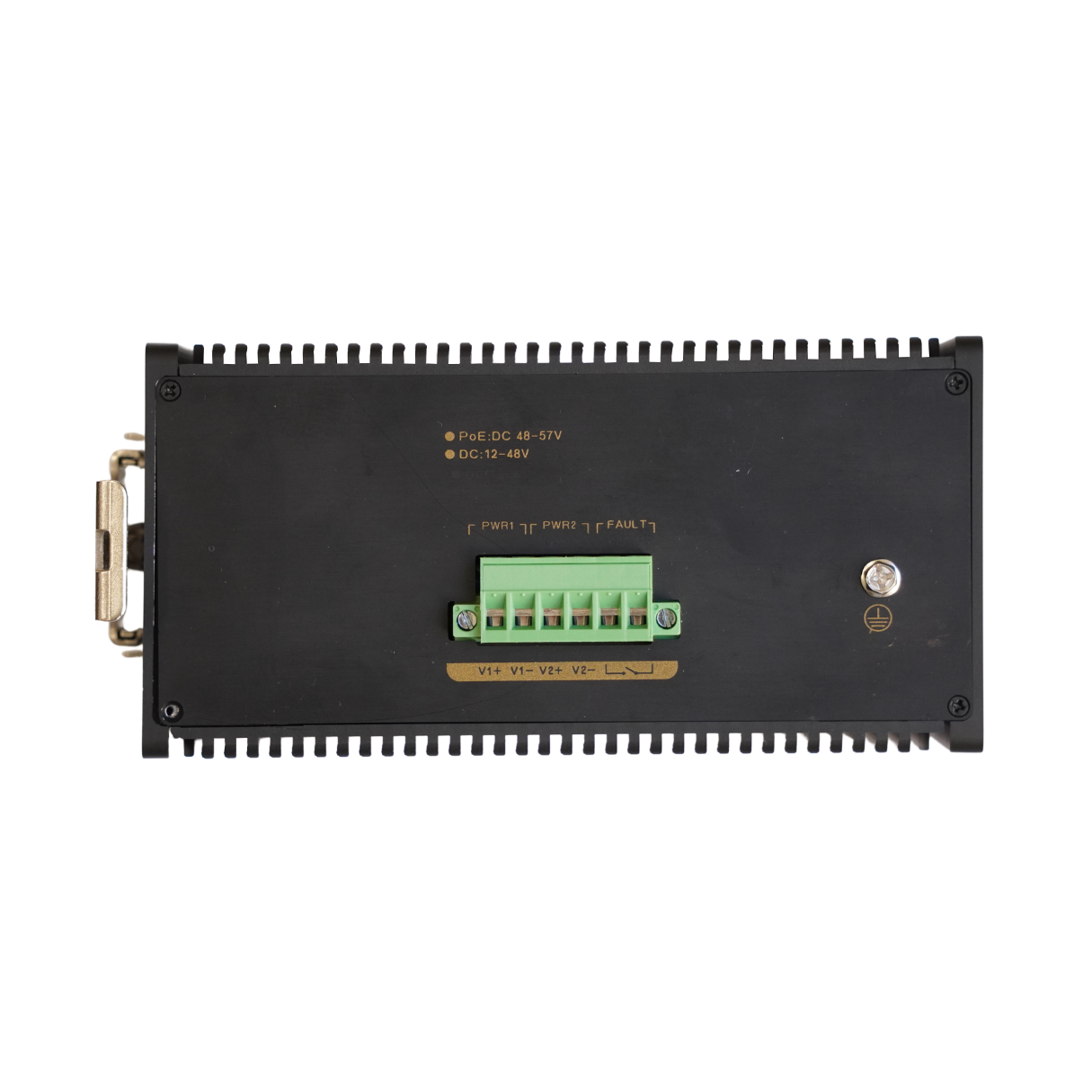

- Dual 48–57VDC power input redundancy
- Auto MDI/MDIX, IEEE 802.3x full-duplex, backpressure flow control
- Layer 2+ managed: VLAN (802.1Q, port-based, GVRP), STP/RSTP, IGMP Snooping, LACP, LLDP, QoS
- 8K MAC address table, 12Gbps switching capacity
- Management: Web GUI, CLI, Telnet, SSH, SNMP v1/v2c/v3
- Security: 802.1x, RADIUS, TACACS+, IP/MAC binding, ACLs, MAC locking
- SNMP & RMON, system event alerts, relay output
- Jumbo frame support up to 9.6KB, 4.5KV surge protection

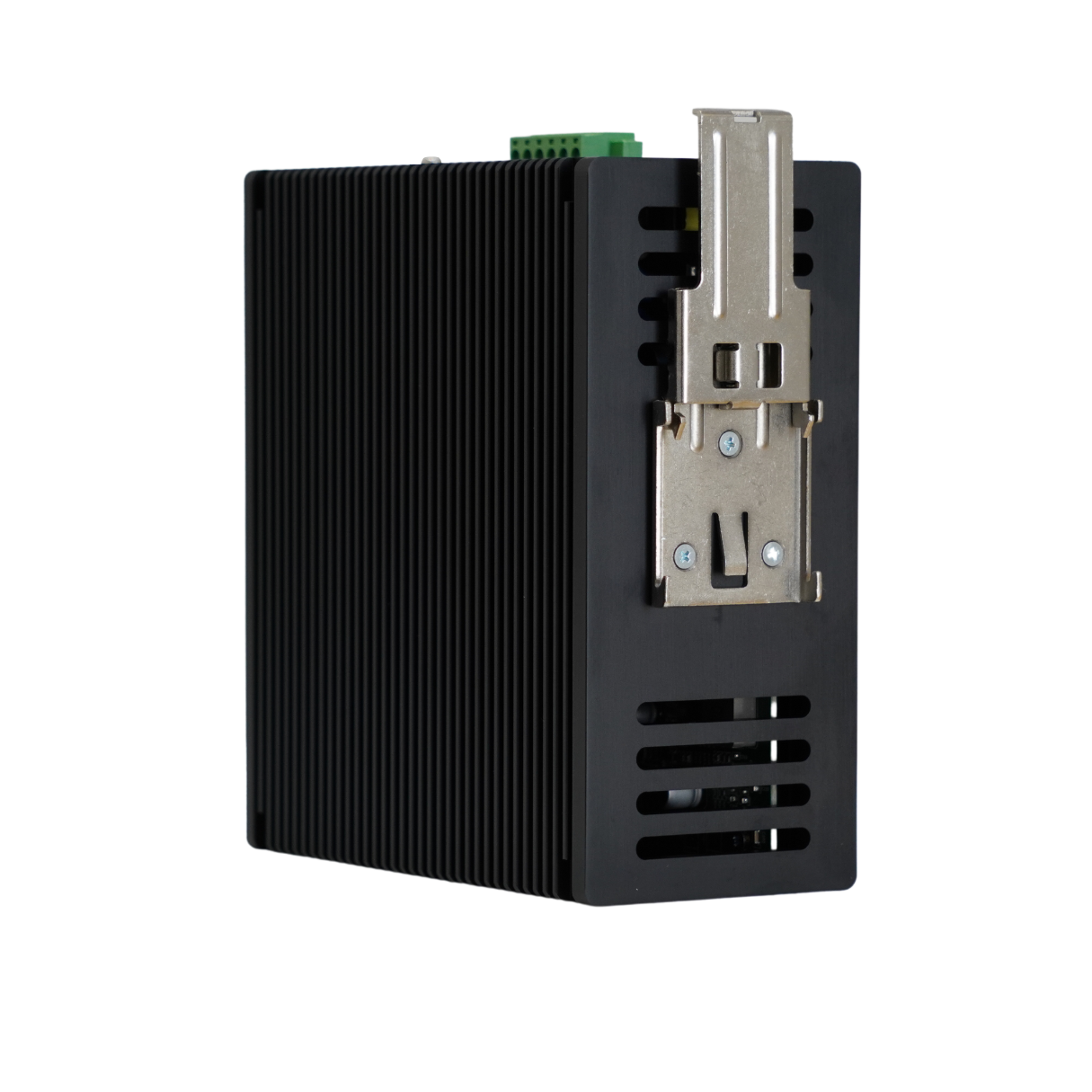

- Fanless, fin-cooled aluminum housing for low power operation in -40°C to +75°C environments

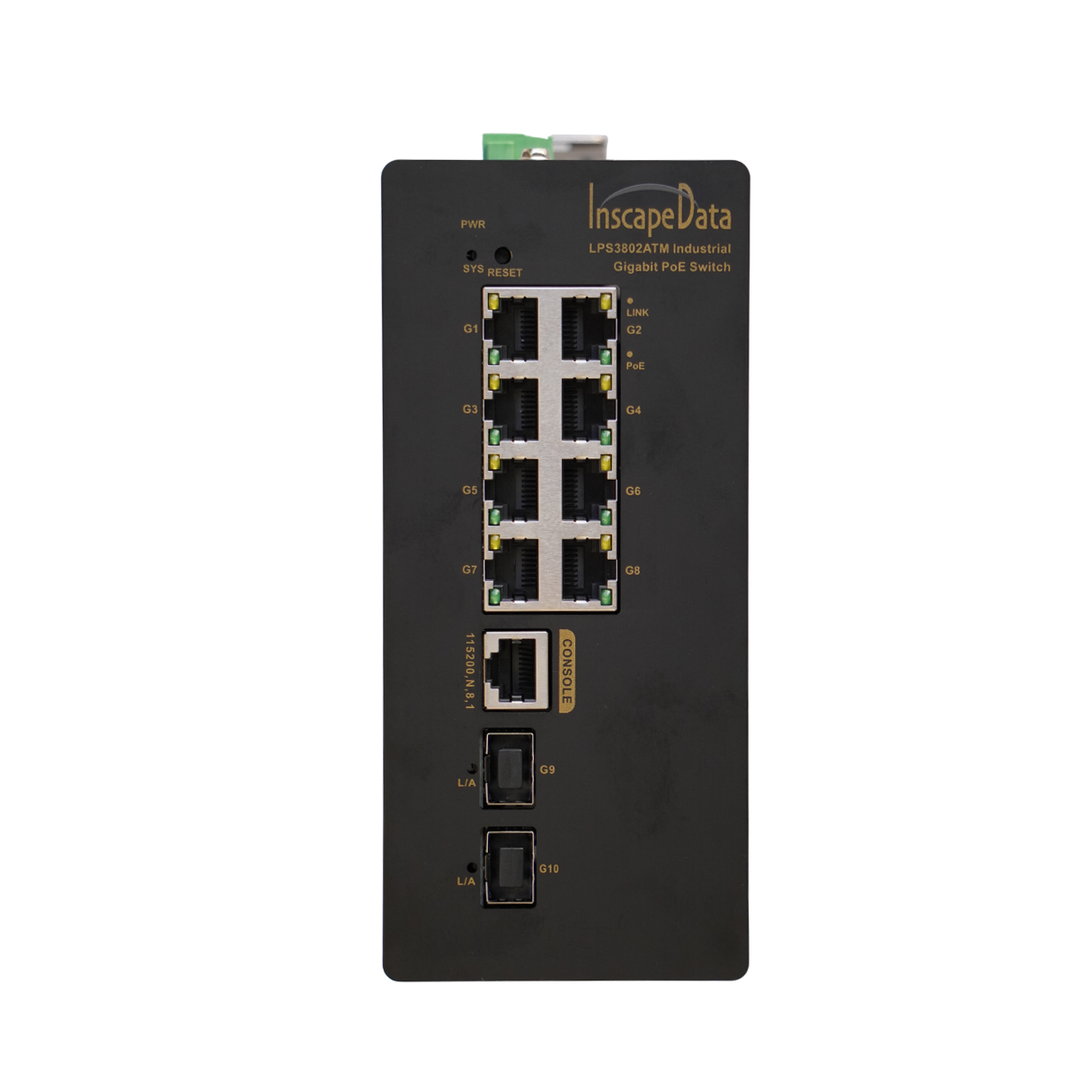

- Panel LEDs: PWR, SYS, Link, L/A, and PoE indicators for real-time device status
- Certified for CCC, CE, FCC, RoHS compliance; ideal for high-bandwidth PoE edge and aggregation applications
