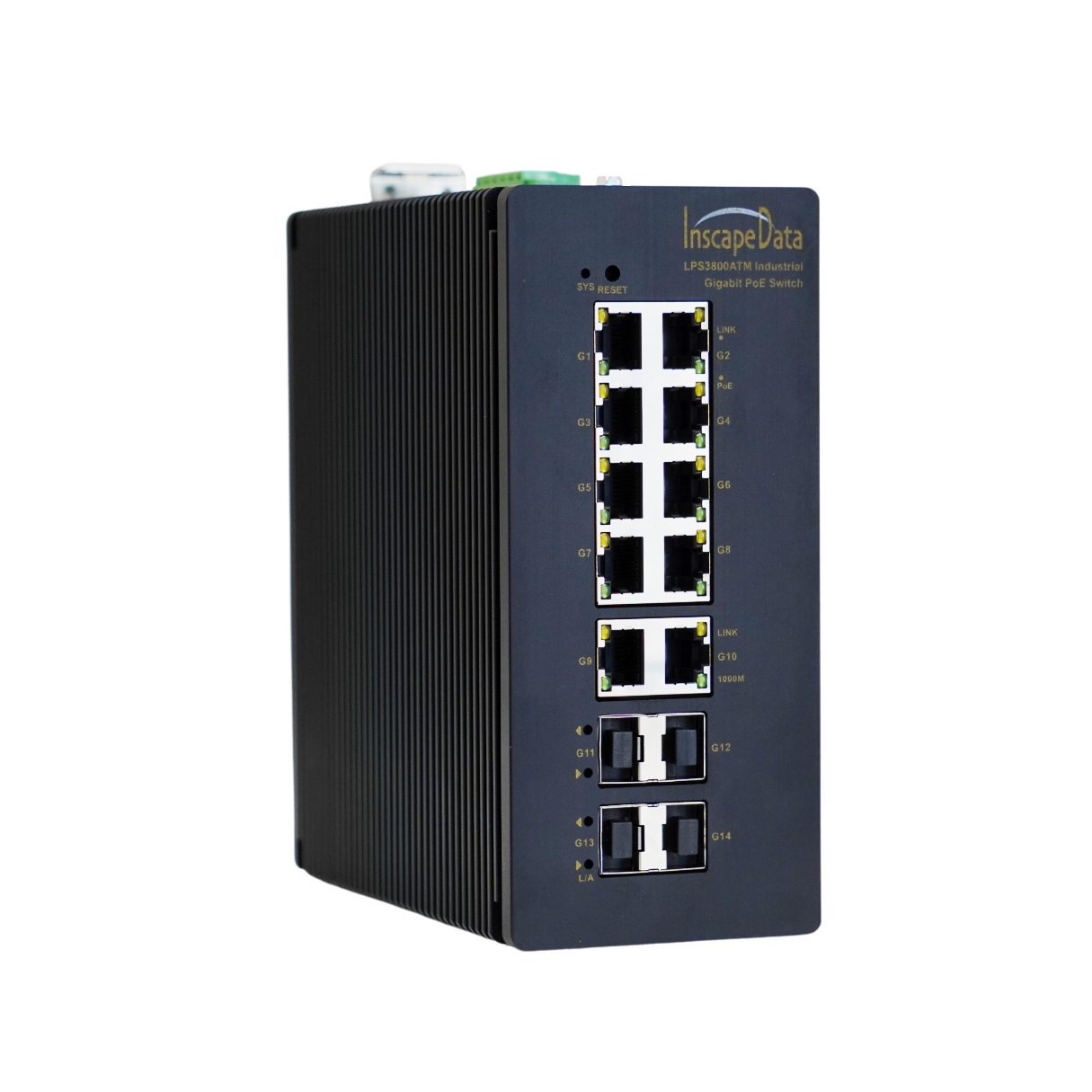

LinkPower™ LPS3800ATM
L2+ Managed Industrial Gigabit PoE Switch
Inscape Data’s LinkPower™ LPS3800ATM is an Industrial 14-port Layer 2+ DIN Rail Full Managed PoE (Power over Ethernet) Switch, and it offers 8-Port Gigabit PoE and 2 Gigabit RJ45 and 4 SFP Uplink Ports with dual power input redundancy, i.e., 48~57V DC. LPS3800ATM offers the rich L2+ management features you need to manage your critical PoE applications, reduceyour overall installation cost, and optimizes your network band- width to deliver information and applications more efficiently and reliably. It provides the ideal combination of manageability and PoE capability for the next-level commercial network and enterprise applications, all of which demand concentrated network bandwidth and high PoE power capability. With the Gigabit transmission, you will be increasing bandwidth for higher performance and quickly transferring large amounts of triple-play services across networks.
- 8 × 10/100/1000Base-T PoE+ ports, 2 × RJ45 uplinks, 4 × 1000/2500Base-X SFP uplinks (Port 13 & 14 support 2.5Gbps)
- IEEE 802.3af/at compliant, up to 30W per PoE port, 240W total PoE budget

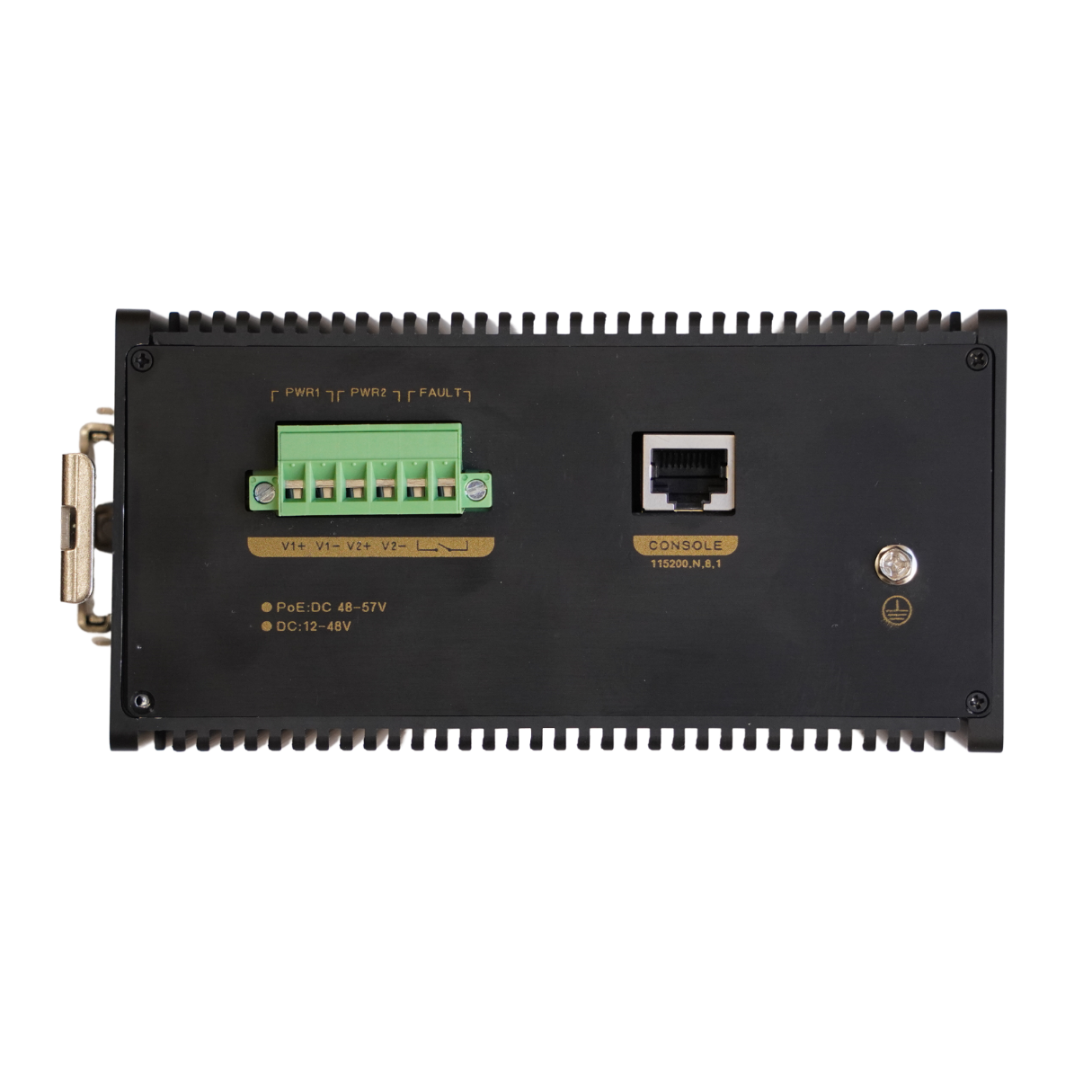

- Dual 48–57VDC redundant power input via industrial terminal block
- Auto MDI/MDIX, IEEE 802.3x full-duplex and backpressure support
- Layer 2+ managed: VLAN (802.1Q, port-based, GVRP), STP/RSTP, IGMP Snooping, LACP, LLDP, QoS (802.1p)
- 8K MAC address table, 12Gbps switching capacity
- Management: Web GUI, CLI, Telnet, SSH, SNMP v1/v2c/v3
- Security: 802.1x, RADIUS, TACACS+, IP/MAC binding, ACLs, MAC locking
- SNMP, RMON, event-based alert via email, relay output
- Jumbo frame support up to 9.6KB, 4.5KV surge protection
- Fanless, fin-cooled aluminum housing for low power operation in -40°C to +75°C environments

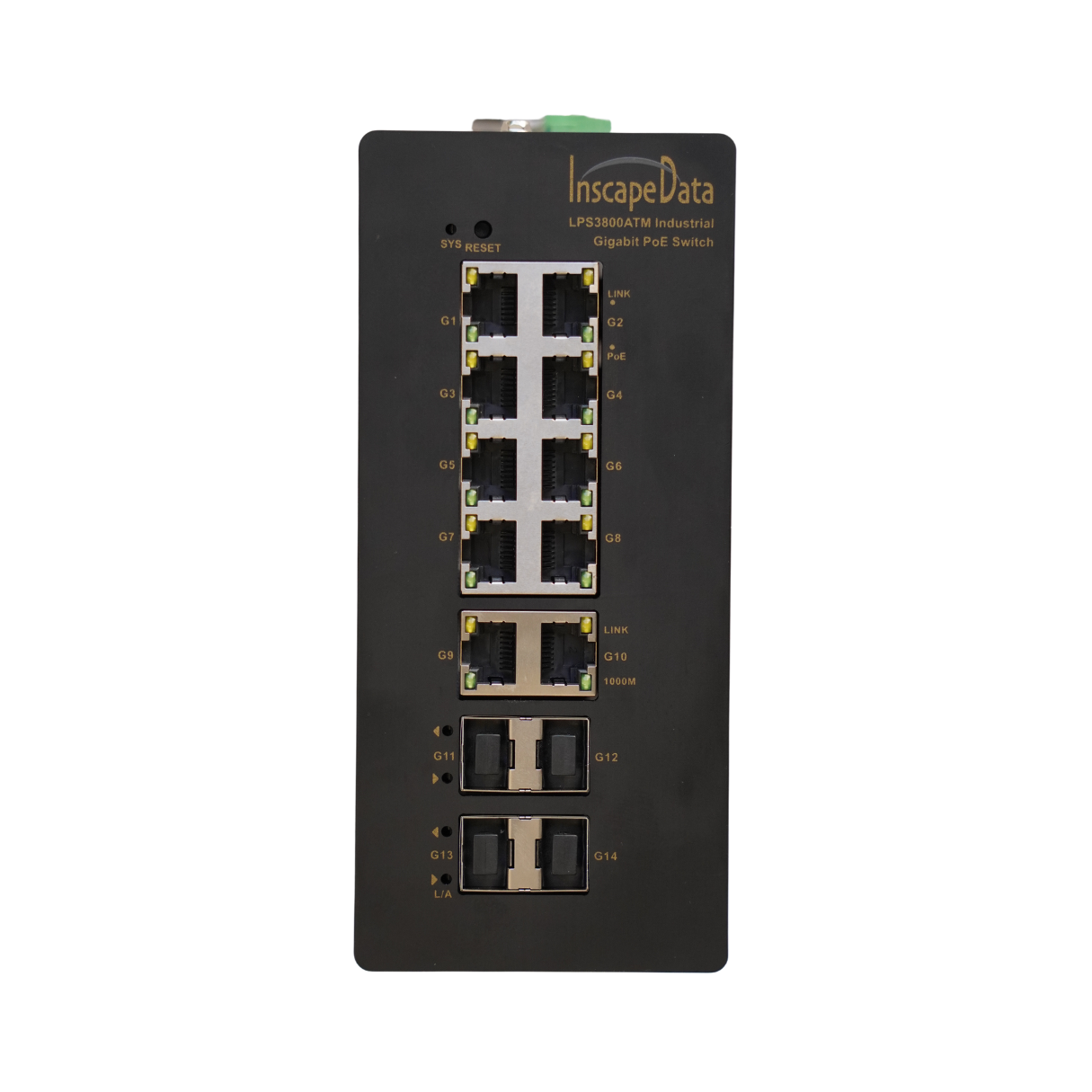

- Panel LEDs: PWR, SYS, Link, L/A, and PoE indicators for real-time device status
- Certified for CCC, CE, FCC, RoHS compliance; ideal for high-bandwidth PoE edge and aggregation applications
Download LPS3800ATM Datasheet
