Remote monitoring and management system for LinkPower™ outdoor UPS solutions. Monitor power, battery status, temperature, alarms, and system health through an integrated Web GUI, with support for Modbus TCP and MQTT network integration.
Remote Web GUI Monitoring
Modbus TCP & MQTT
Alarm & Event Logging
AGM & LFP Monitoring

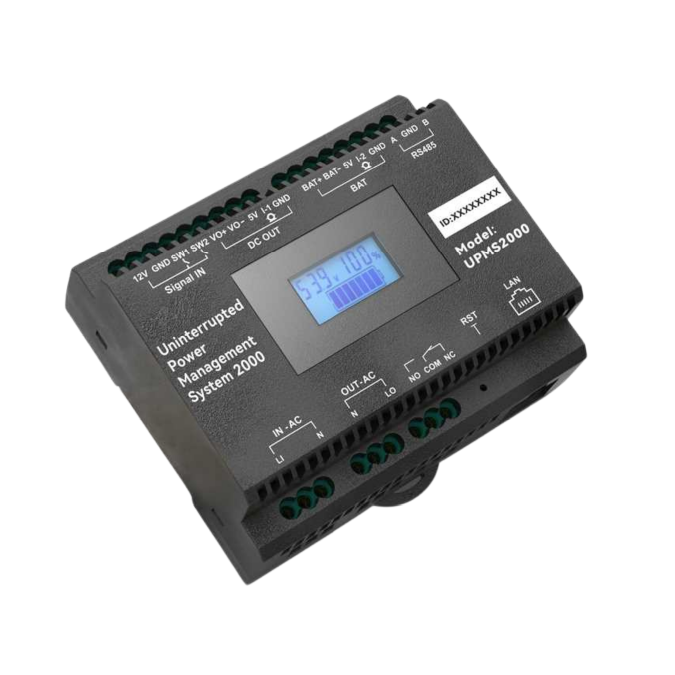

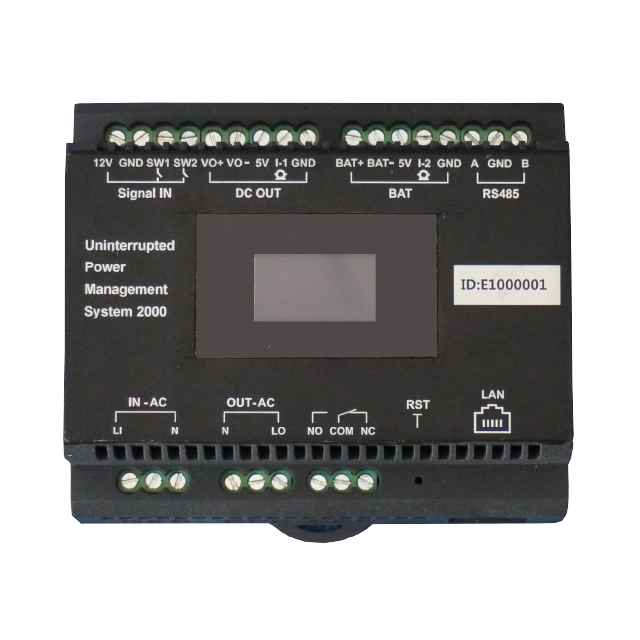

The LinkPower™ UPMS2000 adds remote monitoring, management, and diagnostic capabilities to compatible LinkPower™ 48V DC UPS systems. Through its built-in Web GUI, users can monitor AC input, DC output, load conditions, battery status, charging activity, temperature, alarms, and overall system health.
The system also provides event history, trend data, maintenance information, and remote controls such as system reset, battery testing, and load/power output ON/OFF control. These features help installers and network operators troubleshoot issues and verify system operation without requiring an immediate site visit.
For network integration, the UPMS2000 supports HTTP, Modbus TCP, and MQTT communications, along with static IP and DHCP configuration.

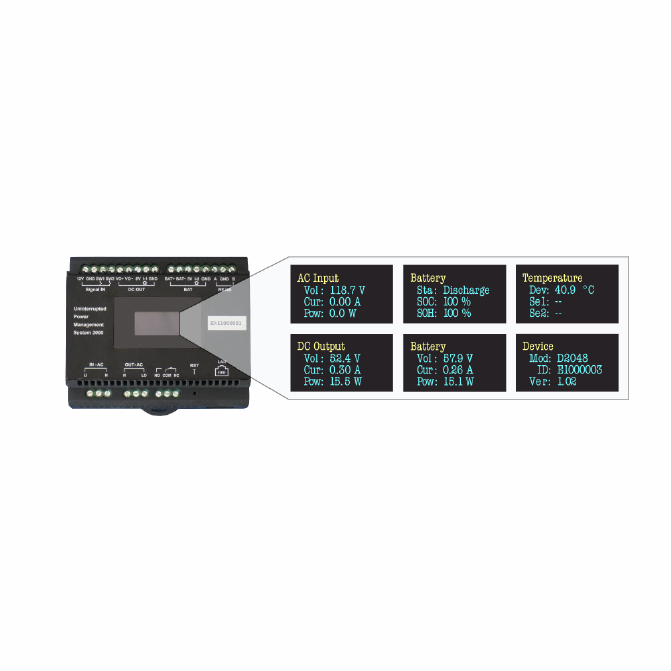

Monitor UPS operating status, battery voltage, charge/discharge current, load power, temperature, alarms, and other critical system information remotely through the integrated Web GUI.
Provides centralized visibility into outdoor UPS performance and battery health, helping operators identify power, battery, and environmental issues before they result in downtime.
The UPMS2000 supports remote system reset, battery testing, and load/power output ON/OFF control, while maintaining alarm and event history for troubleshooting and maintenance.
Reduces unnecessary site visits by allowing installers and network administrators to remotely check system status, review alarms, perform diagnostics, and manage supported UPS functions over the network.
| Application | 48V DC UPS monitoring and management |
| Management Port | 1 × RJ45 Ethernet, 10/100 Base-T |
| Supported Protocols | HTTP, Modbus TCP, MQTT |
| Web Interface | Built-in Web GUI |
| Battery Support | AGM and LiFePO4 (LFP) |
| Remote Controls | System reset, battery test, load/power output ON/OFF |
| Monitoring | Power, battery status, temperature, alarms, and system health |
The integrated UPS management system that allows users to monitor power status, battery voltage, battery current, temperature, alerts, and system events through a network interface.
This option is ideal for deployments where service teams need remote visibility into UPS health, battery condition, and system status without visiting the site.
Real-time monitoring
Alert notifications
Battery & system health
Network connectivity
Contact our sales team to match the correct UPS system, battery
configurations and management option to your project requirements.
