Outdoor networks are supporting more critical infrastructure than ever before.
IP surveillance, outdoor Wi-Fi, transportation systems, mobile security trailers, and remote communications all depend on one thing before anything else:
Reliable power.
That is why Inscape Data developed the next generation of our outdoor UPS platform: the LinkPower™ UPS1048V2 Series.

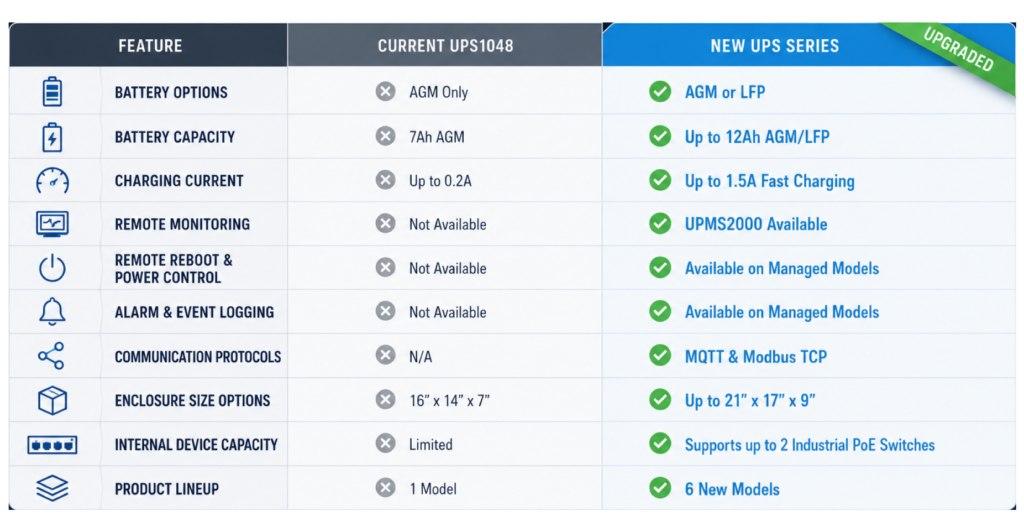

The UPS1048V2 builds on the original UPS1048 with major upgrades designed to provide more flexibility, faster recovery, and greater visibility for modern outdoor networks.
More Battery Options
One of the biggest changes is battery flexibility.

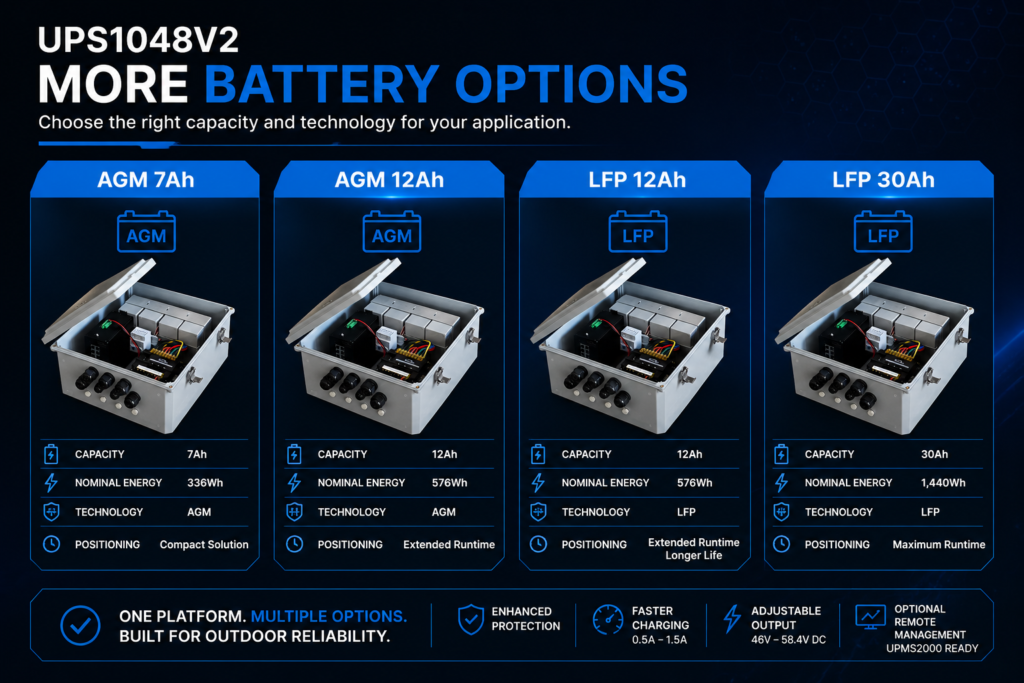

The UPS1048V2 platform now offers multiple AGM and Lithium Iron Phosphate (LFP) configurations:
7Ah AGM | 12Ah AGM | 12Ah LFP | 30Ah LFP
This allows customers to select the battery configuration that best matches their required runtime, application, and deployment environment.
For applications requiring extended backup time, the new 30Ah LFP configuration provides up to 1,440Wh of nominal stored energy.
Faster Battery Charging
Backup power is only useful when the batteries are ready for the next outage.
The new UPS1048V2 features an upgraded rectifier and an adjustable charging current from 0.5A to 1.5A, allowing the battery bank to recover faster following a discharge event.
The system also provides selectable AGM and LFP charging profiles, allowing the UPS1048V2 platform to support different battery technologies from the same next-generation architecture.
More Protection. More Flexibility.
UPS1048V2 also introduces additional protection and configuration capabilities, including:
Overload Protection • Over-Voltage Protection • Short-Circuit Protection • Deep-Discharge Protection • Over-Temperature Protection
The DC output can also be adjusted from 46V to 58.4V, providing additional flexibility for compatible 48V DC equipment.
Optional Remote Management
For applications that require greater visibility and control, the UPS1048V2 is also available in managed configurations featuring the UPMS2000 Power Management System.
UPMS2000 adds remote monitoring, alarms, event logging, system management, MQTT, and Modbus TCP capabilities.
Missed Blog #1? Learn more in Introducing the UPMS2000 Remote Power Monitoring System.
Built Around Your Application
The UPS1048V2 is no longer a one-size-fits-all outdoor UPS.
With multiple battery capacities, AGM and LFP options, managed and unmanaged configurations, and larger Pro enclosures, customers can build the backup power system around the requirements of their application.
From a compact 7Ah AGM system to an extended-runtime 30Ah LFP solution, the UPS1048V2 gives network designers more options to protect critical outdoor infrastructure.
Which UPS1048V2 Is Right for Your Network?
That is exactly what we will cover next.
Coming Next: Blog #3 How to Select the Right UPS1048V2 Solution
Need help selecting a UPS1048V2 configuration today?
Contact sales@inscapedata.com, and our team can help configure the right system for your application.
