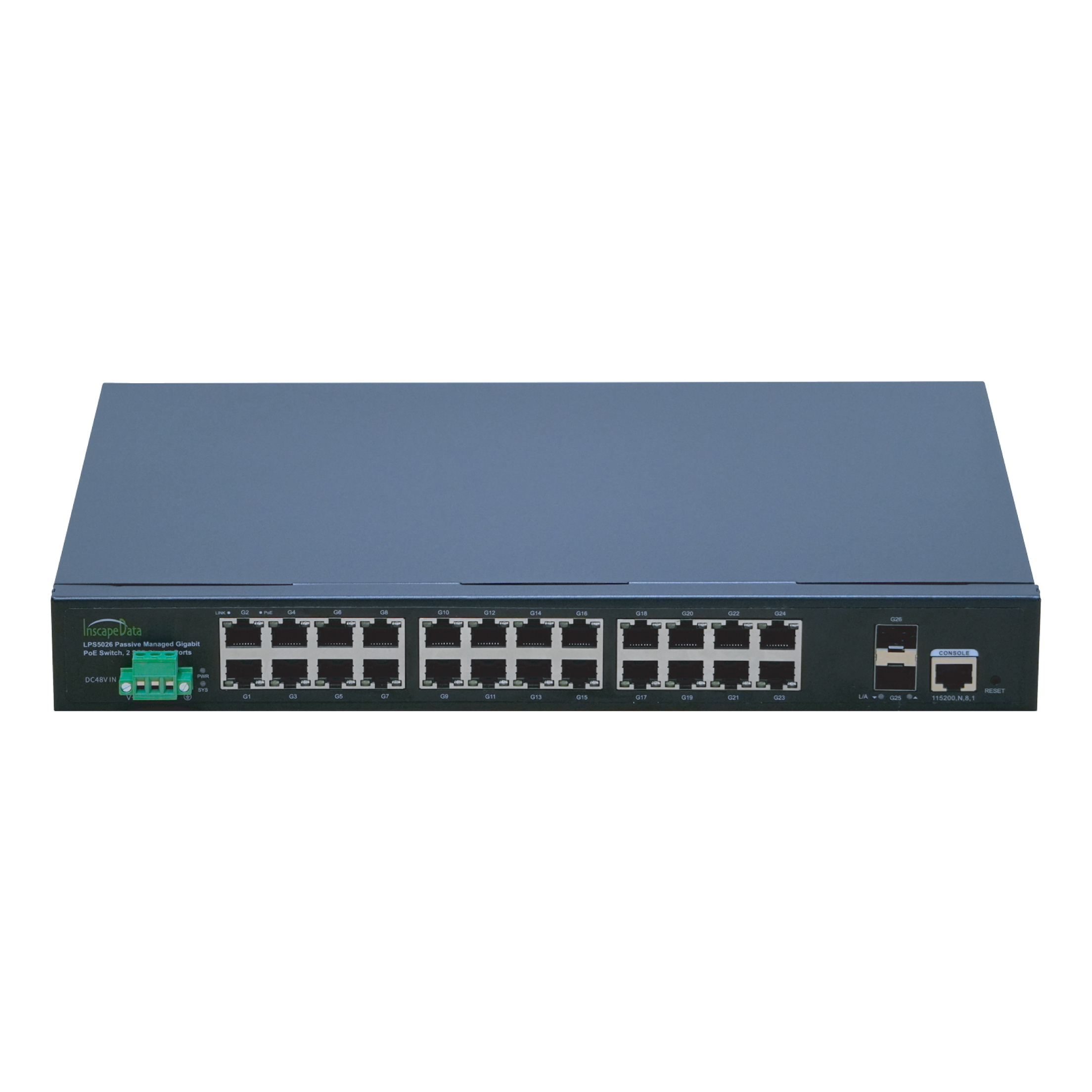

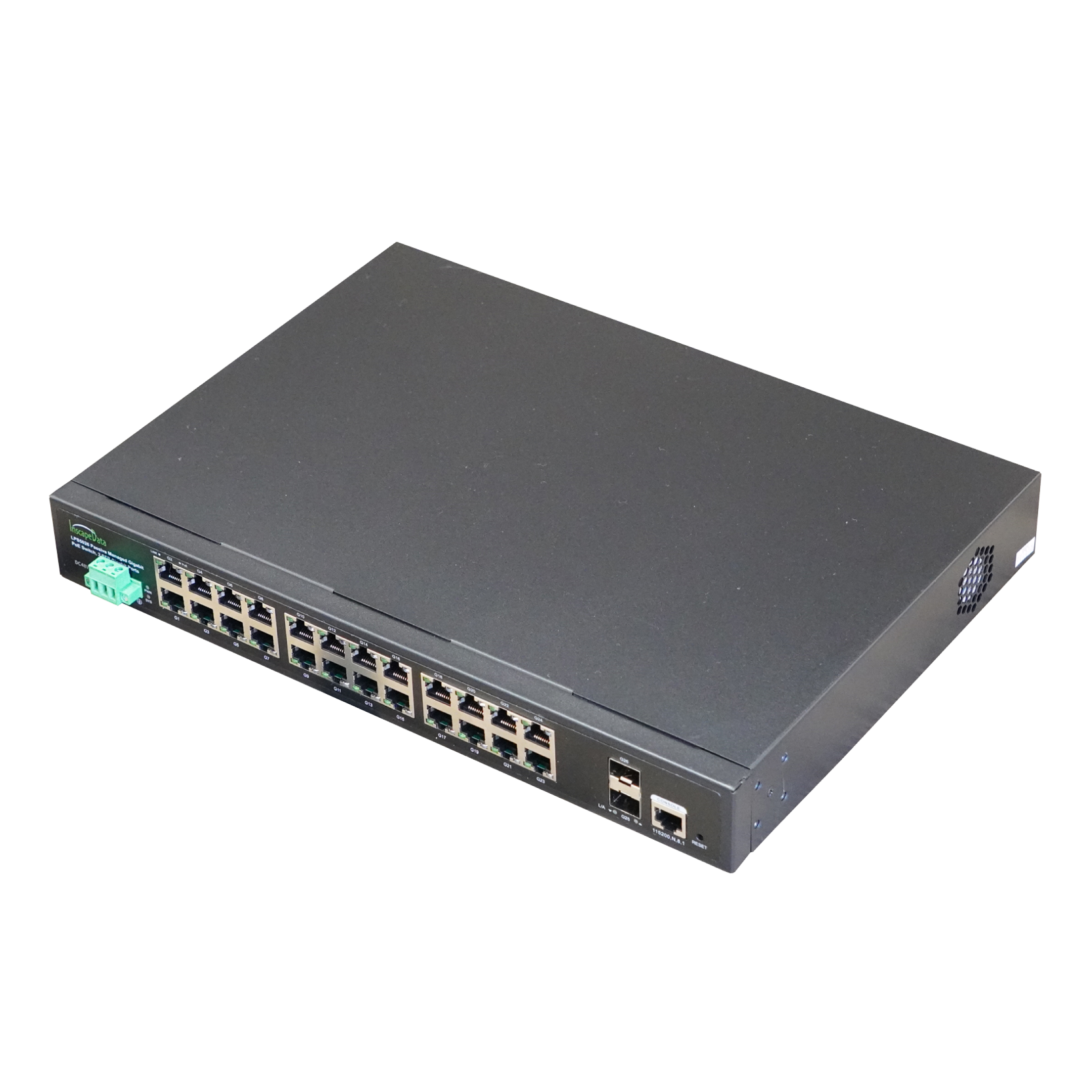

LinkPower™ LPS5026, Managed Gigabit
Passive PoE Network Switch

The LinkPower LPS5026 is a fully managed Gigabit Passive PoE fiber switch, designed to deliver high-power passive PoE connectivity for demanding network environments. With 24 Gigabit Ethernet ports and 2 Gigabit SFP uplink ports, the LPS5026 provides reliable data transmission and high PoE power output to support wireless networking, surveillance systems, building access control, and industrial applications.

This switch supports 24V and 48V passive PoE, ensuring compatibility with a wide range of non-standard PoE-powered devices. Ports 1-4 deliver up to 36W/72W per port, while ports 5-24 provide 18W/36W per port, with a maximum total PoE output of 400W. This makes the LPS5026 an ideal choice for high-density PoE network infrastructures that require scalable power distribution.

With advanced network management capabilities, including VLAN support, QoS prioritization, STP/RSTP spanning tree protocol, and link aggregation, the LPS5026 enhances network efficiency, security, and redundancy. Its built-in power supply and external DC power input provide power redundancy for increased reliability, while adjustable PoE voltage per port allows for customized deployment in various applications.

The LPS5026 is designed to simplify network expansion, eliminate the need for separate power sources, and provide a cost-effective, high-capacity PoE solution for businesses, system integrators, and enterprise-level deployments.

24× 10/100/1000Base-T RJ45 ports and 2× 1000M SFP fiber uplink ports for high-speed data transmission and network scalability.
Full-duplex support based on IEEE802.3x and half-duplex support based on backpressure.
Power redundancy with built-in power supply and external DC power input for uninterrupted operation.
Ports 1-4: Maximum PoE power 36W/72W per port; Ports 5-24: Maximum PoE power 18W/36W per port.
Total PoE budget: 400W for supporting multiple passive PoE-powered devices in high-density environments.
Adjustable voltage per port for non-standard passive PoE, ensuring flexible power delivery for various applications.
PoE passthrough support for direct connection to non-standard electrical equipment or separation lines.
IEEE 802.1Q VLAN and protocol VLAN support for network segmentation and enhanced traffic management.
STP/RSTP spanning tree protocol support to eliminate layer 2 loops and enable link redundancy.
QoS support with port-based, 802.1P-based, and DSCP-based prioritization, plus four queue scheduling algorithms (Equ, SP, WRR, SP+WRR) for optimized data flow.
ACL support for advanced packet filtering, traffic management, and security policy enforcement.
IGMP V1/V2 multicast protocol and IGMP Snooping to improve bandwidth efficiency in video surveillance and conferencing applications.
Static and dynamic link aggregation for increased bandwidth, traffic load balancing, and enhanced link reliability.
Advanced network diagnostics including CPU monitoring, memory monitoring, Ping detection, and cable diagnostics.
SSH V1/V2 encryption support for secure remote network management.
System logs and port traffic statistics for real-time network monitoring, troubleshooting, and optimization.
LLDP support for network discovery and device communication status tracking.
Comprehensive management interfaces, including Web GUI, CLI (Console, Telnet), and SNMP (V1/V2/V3) for flexible administration.
