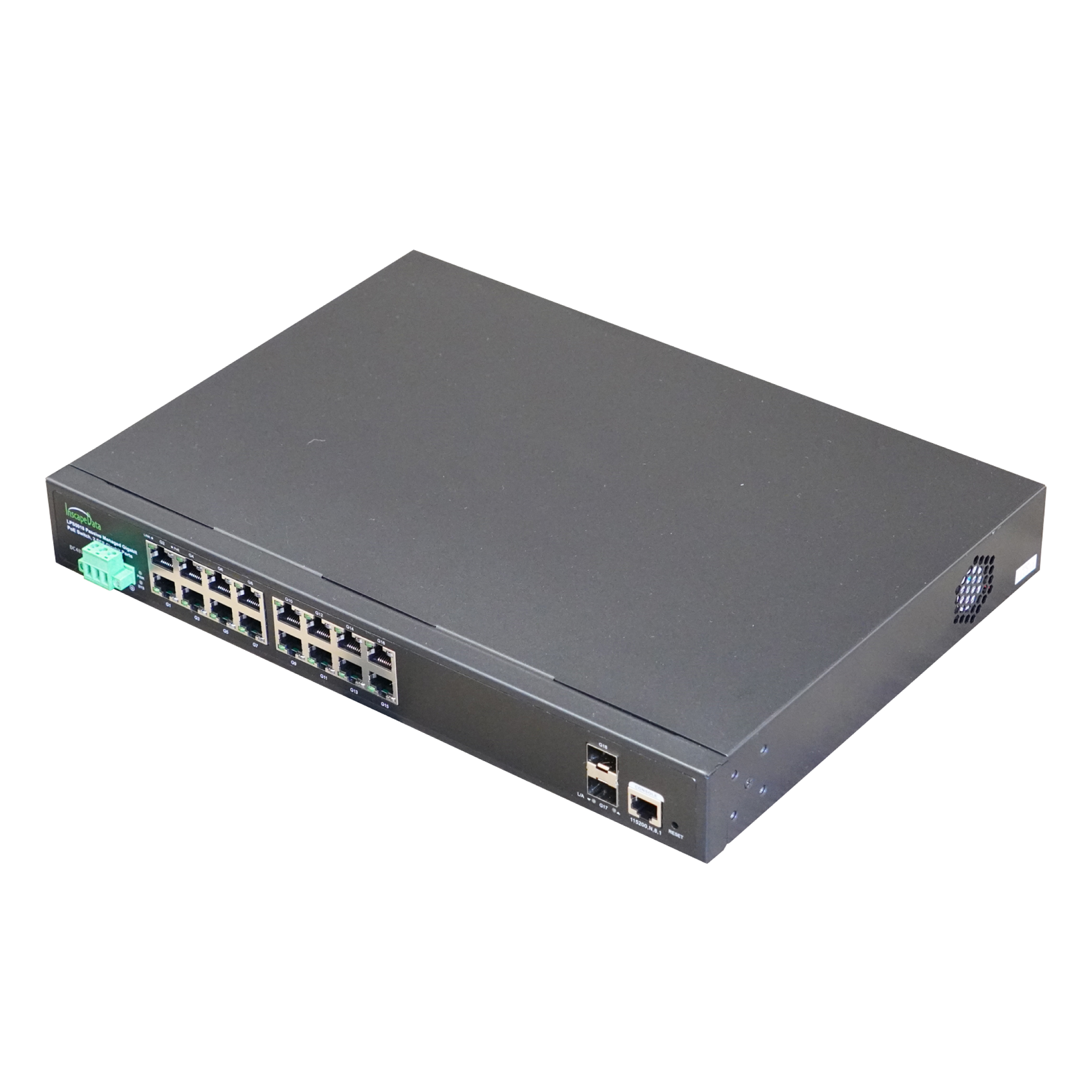

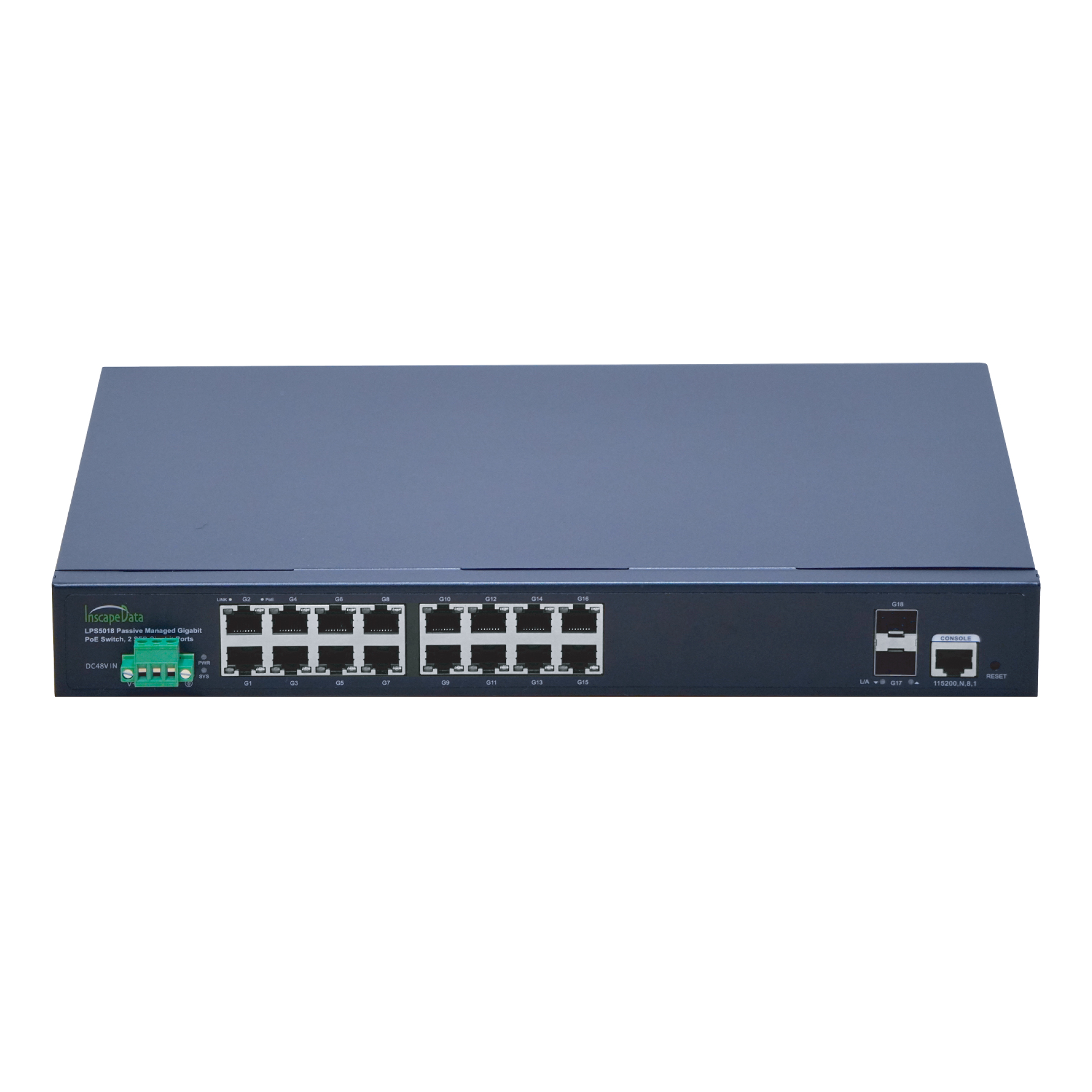

LinkPower™ LPS5018, Managed Gigabit
Passive PoE Network Switch

The LinkPower™ LPS5018 is a fully managed Gigabit Passive PoE fiber switch, engineered to deliver efficient power and high-speed data connectivity for non-standard PoE devices. Designed for high-density networking, it is ideal for applications such as wireless networking, building access control, security surveillance, and industrial automation.

Equipped with 16 Gigabit Ethernet ports and two Gigabit SFP fiber uplink ports, the LPS5018 supports both 24V and 48V passive PoE power output. Ports 1-4 provide up to 36W/72W per port, while ports 5-16 support 18W/36W per port, with a total PoE power budget of 250W. This flexible power distribution makes it an ideal choice for networks that require customized power levels across multiple passive PoE devices.

The LPS5018 is designed to power wireless bridges, access control systems, IP intercoms, and other passive PoE-enabled devices—eliminating the need for separate power sources and simplifying network deployments. With comprehensive management features, network administrators gain full control over traffic management, VLAN settings, and security configurations, ensuring optimized network performance.

Built for scalability, efficiency, and reliability, the LPS5018 is the perfect solution for businesses and integrators looking for a high-capacity passive PoE switch to support their evolving network infrastructure.

16× 10/100/1000Base-T RJ45 ports and 2× 1000M SFP fiber uplink ports for flexible networking applications.
Full-duplex support based on IEEE802.3x and half-duplex support based on backpressure.
Power redundancy with built-in power supply and external DC power input for increased reliability.
Ports 1-4: Maximum PoE power 36W/72W per port; Ports 5-16: Maximum PoE power 18W/36W per port.
Adjustable voltage per port for non-standard passive PoE, enabling direct power delivery to connected devices.
PoE passthrough support for direct connection to non-standard electrical equipment or separation lines.
IEEE 802.1Q VLAN and protocol VLAN support for flexible network segmentation and traffic management.
STP/RSTP spanning tree protocol support to eliminate layer 2 loops and enable link backup.
QoS support with port-based, 802.1P-based, and DSCP-based prioritization, plus four queue scheduling algorithms (Equ, SP, WRR, SP+WRR).
ACL support for advanced data packet filtering, access control rules, and security enforcement.
IGMP V1/V2 multicast protocol and IGMP Snooping for optimized video surveillance and conferencing applications.
Static and dynamic link aggregation to enhance bandwidth, balance traffic loads, and ensure link redundancy.
Network diagnostics including CPU monitoring, memory monitoring, Ping detection, and cable diagnostics.
SSH V1/V2 encryption support for secure management and remote access.
System logs and port traffic statistics for network monitoring, optimization, and troubleshooting.
LLDP support for device discovery and network topology management.
Multiple management options, including Web GUI, CLI (Console, Telnet), and SNMP (V1/V2/V3) for flexible administration.
