PRODUCTS / OUTDOOR DIN RAIL & RACK MOUNT PoE SWITCHES

LinkPower™ LPS3560CME, All-in-One Box
Outdoor PoE Switch System

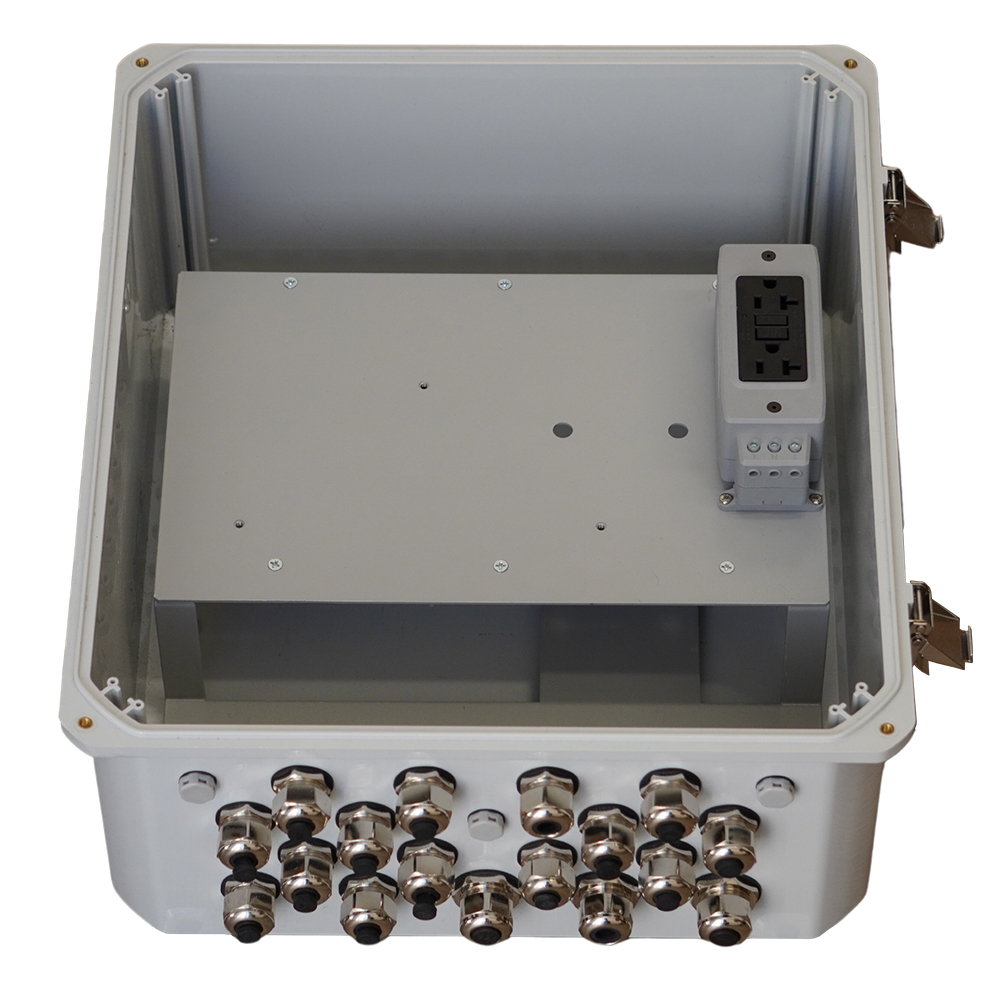

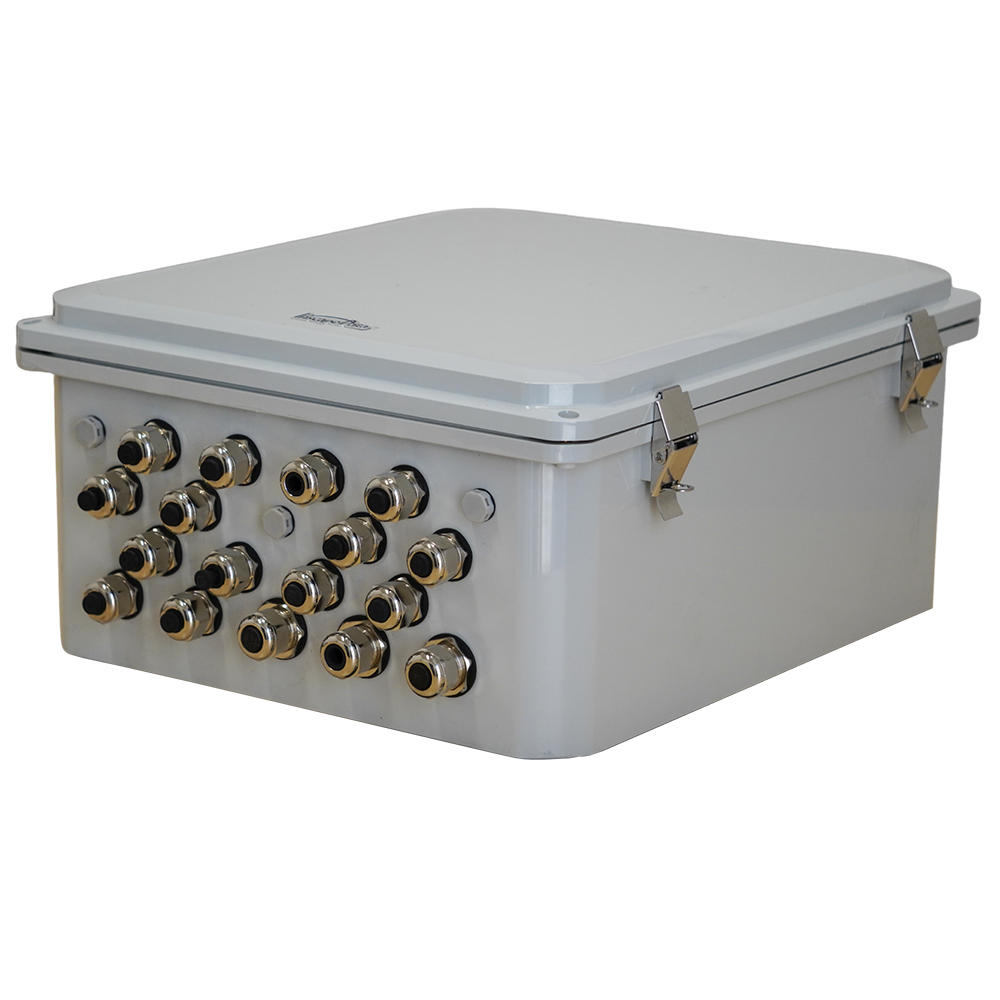

The LinkPower™ LPS3560CME is a specialized outdoor switch system designed with Inscape Data's innovative All-in-One Box outdoor enclosure, offering exceptional durability and protection for your critical networking components. This advanced enclosure design is engineered to withstand harsh environmental conditions, ensuring long-lasting performance in challenging outdoor settings, including underground installations where protection from moisture, debris, and temperature fluctuations is crucial.

The LPS3560CME is integrated with a reliable duplex AC Power Receptacle power supply, making it fully compatible with the Cisco Catalyst & Meraki Switch Series. This integration not only provides robust power support but also simplifies the deployment process by consolidating power and networking capabilities into a single, streamlined enclosure. This feature is particularly advantageous for underground network applications where space is limited and reliability is paramount.

Ideal for underground network applications, the LPS3560CME excels in environments requiring secure, high-performance connectivity. Whether for utility networks, subway systems, or other subterranean infrastructures, this system ensures continuous operation and optimal performance. With the LPS3560CME, you can confidently extend your network's reach to even the most challenging locations, knowing that your equipment is safeguarded by Inscape Data's cutting-edge enclosure technology.

  • Impact-resistant polycarbonate enclosure IP68 with hinged cover with stainless steel hardware and four cover screws
  • Stainless steel latch with area for padlock
  • Supports 16 Total Ports: 14 RJ45 Ports, 2 SFP Ports, and 1 AC Port Brass IP68 weatherproof connectors
  • Use GFI compliant AC receptacle
  • Support for switch width up to 13.75 inches
  • Custom-design inside frame for better space management and potential water immersion prevention
  • Internal cable storage and management for easy access and safety
  • Easy access to the switch and the AC receptacle
  • Ventilation for the enclosure to reduce the internal moisture
  • Enclosure dimensions, 16x14x7 Inch
  • Certification includes UL94 V-0, UL746C 5VA

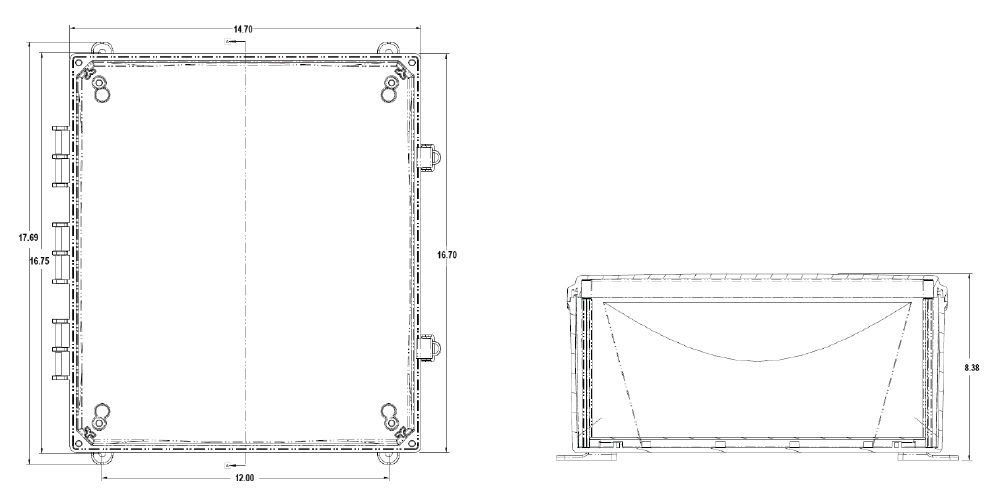

dimensions
