PRODUCTS / COMMERCIAL POE SWITCHES

LinkPower™ PL3-480004, L3 Managed
Gigabit PoE Switch Series

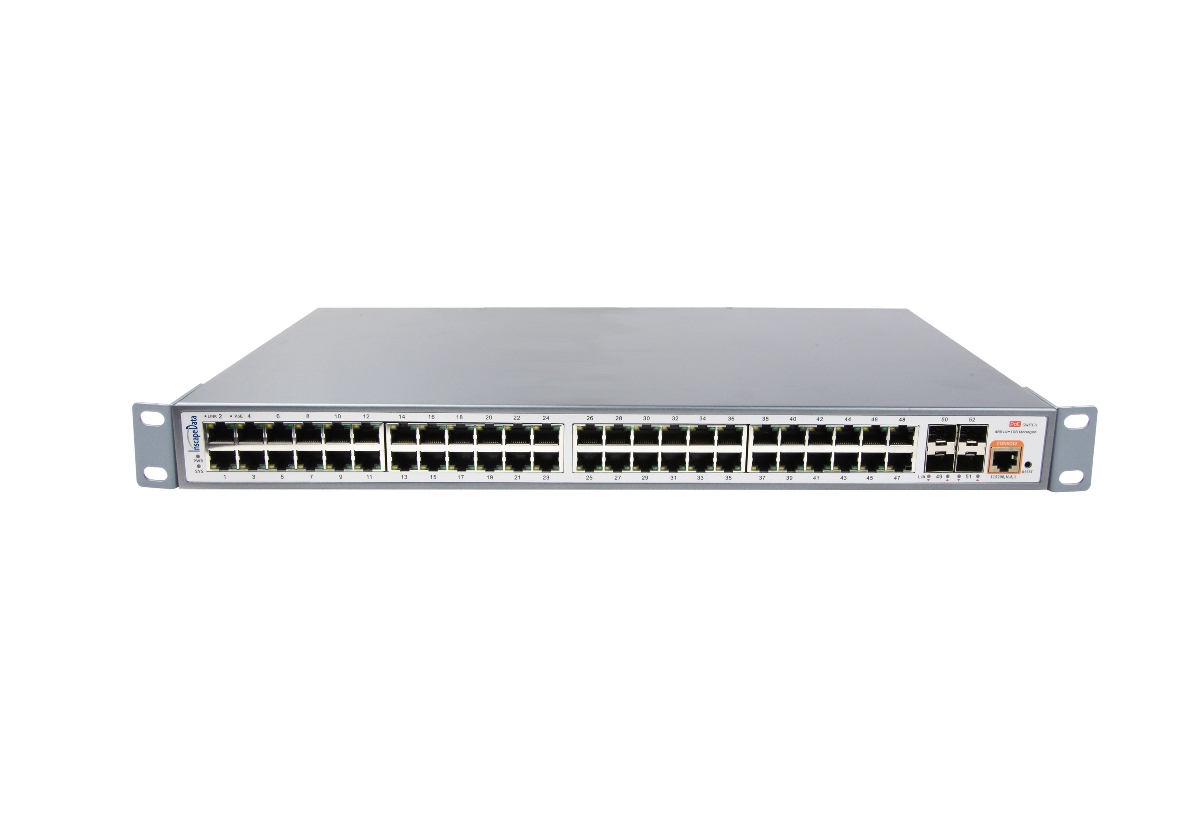

The LinkPower™ PL3-480004 from Inscape Data is a robust 52-port Layer 3 fully managed PoE switch built to support the core of enterprise and commercial networks with high-density connectivity and intelligent routing. It features 48 10/100/1000Mbps PoE RJ45 ports compliant with IEEE 802.3af/at standards, along with 4 high-speed 10Gb SFP+ uplink ports for advanced backbone connections.

Engineered with a top-rated 10G switching chip and multi-layer PCB architecture, the PL3-480004 delivers enhanced forwarding stability, high packet processing speed, and superior overall performance. Designed for mission-critical deployments, it includes support for RSTP/MSTP Ring Protection Protocols to ensure fast failover and true ring loop redundancy.

Thanks to its plug-and-play 10Gb uplink ports, no additional configuration is required—making deployment easier while minimizing the risk of network failure. The PL3-480004 is the ideal Layer 3 core PoE switch for organizations that demand high performance, reliability, and scalable power distribution in a single, streamlined solution.

  • 48x 10/100/1000M PoE RJ45 ports + 4x 10G SFP+ ports
  • Support 48 PoE ports compliant with IEEE 802.3af/at standards. Allow PoE configuration and management for each PoE port, and the total system power is 600W
  • Support L3 Switching features, including Static route, Default route, ARP, VLAN, TRUNK, Mirroring, Port isolation/flow control/speed limit, Storm control, QOS, ACLs etc.
  • Support spanning tree STP, RSTP and MSTP
  • Jumbo frames support up to 9.6K kilobytes
  • Support enhanced management through WEB, CLI, TELNET, SNMP, and cable diagnosis
  • Support dynamic or static binding by users’ definition, such as IP, MAC, VLAN, PORT, etc.
  • Support port isolation, to prevent communication between two neighbor network equipment within the same broadcast domain
