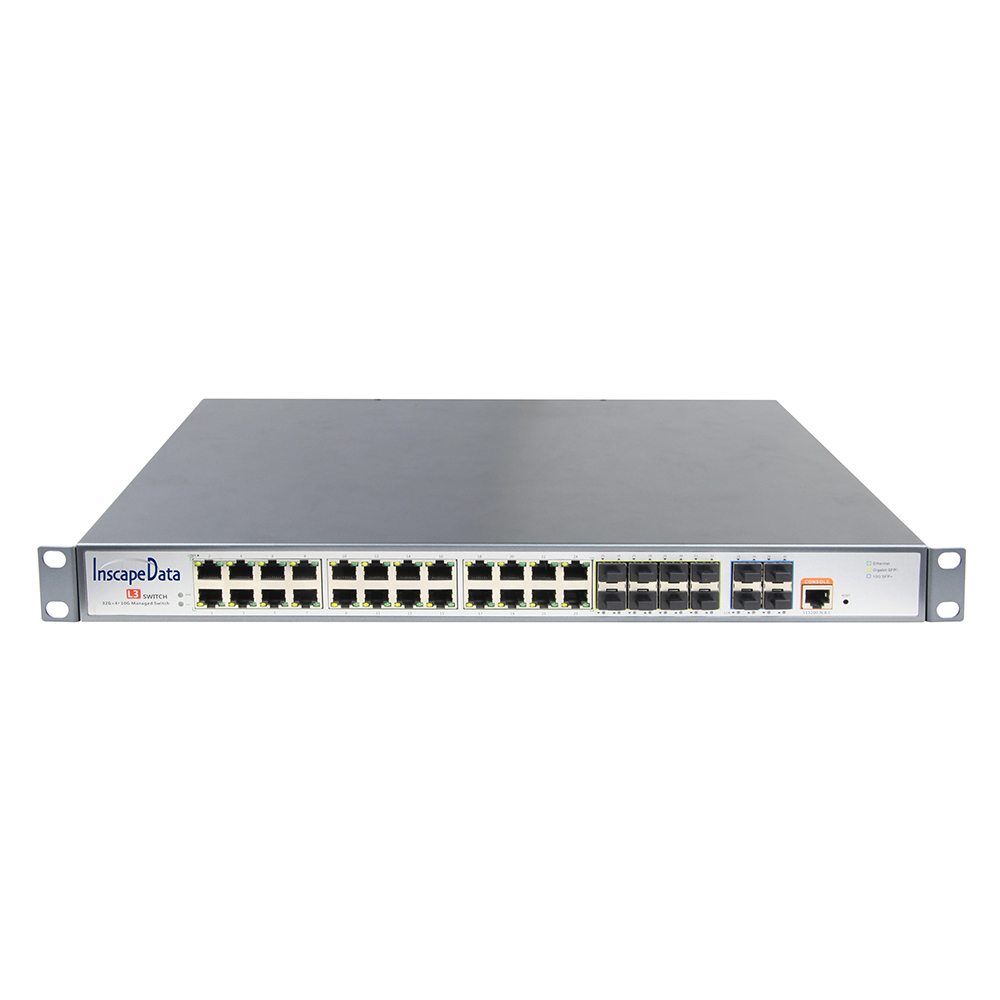

LinkPower™ PL3-240084, L3 Managed
Gigabit PoE Switch Series
The LinkPower™ PL3-240084 from Inscape Data is a high-performance 36-port Layer 3 fully managed PoE switch designed for core networking in enterprise and commercial environments. It features 24 10/100/1000Mbps PoE RJ45 ports compliant with IEEE 802.3af/at standards, 8 Gigabit SFP ports, and 4 high-speed 10Gb SFP+ uplink ports, making it ideal for demanding, high-bandwidth applications.
Powered by a top-rated 10G network switching chip and built with a multi-layer PCB design, the PL3-240084 delivers exceptional forwarding stability, high-speed packet processing, and advanced network performance. Its Layer 3 capabilities enable intelligent routing and network segmentation, enhancing both scalability and efficiency.
The switch also supports RSTP/MSTP Ring Protection Protocols, ensuring rapid recovery and redundancy in ring network topologies. Plus, its plug-and-play 10G uplink ports eliminate the need for additional configuration, helping reduce network failure risks. The PL3-240084 is the ideal solution for organizations that require powerful core switching, advanced management features, and reliable PoE performance—all in one switch.
- 24x 10/100/1000M PoE RJ45 ports + 8x Gigabit SFP ports + 4x 10G SFP+ ports
- Support 24 PoE ports compliant with IEEE 802.3af/at standards. Allow PoE configuration and management for each PoE port, and the total system power is 400W
- Support L3 Switching features, including Static route, Default route, ARP, VLAN, TRUNK, Mirroring, Port isolation/flow control/speed limit, Storm control, QOS, ACLs etc.
- Support spanning tree STP, RSTP and MSTP
- Jumbo frames support up to 9.6K kilobytes
- Support enhanced management through WEB, CLI, TELNET, SNMP, and cable diagnosis
- Support dynamic or static binding by users’ definition, such as IP, MAC, VLAN, PORT, etc.
- Support port isolation, to prevent communication between two neighbor network equipment within the same broadcast domain
Download LinkPower™ PL3-240084 Series Datasheet
