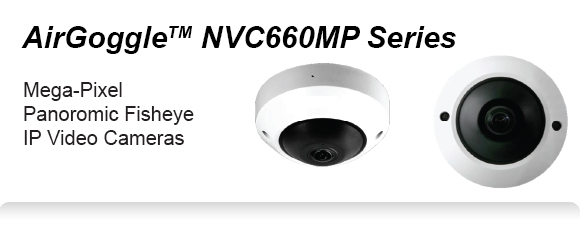

                        AirGoggle™ NVC660MP3 FE Panoromic Fisheye IP Camera is a compact, yet powerful fisheye dome camera featuring many cutting- edge technologies. The high resolution fisheye lens provides 360° surround view with image detail even at the normally weak edges; the huge 1/1.8" 5-Megapixel image sensor ensures superior low light sensitivity; our advanced fisheye dewarping algorithms keep distortion lower than others while putting less computing loading on the server; and last but not least, video can be streamed in the ultra-efficient H.265 format, which has up to 50% lower bitrates and cuts your bandwidth and storage requirements in half. It also features a removable IR-cut filter, MicroSD/SDHC/SDXC edge storage, PoE, two- way audio and alarm input/output, making it a extremely versatile camera with maximum coverage.
  |


                      |   |


                      |   |


                       |

                    • H.265, H.264, and Motion JPEG compression
                      • WDR
                      • True day & night with automatic removable IR-cut filter
                      • Two-way audio and built-in microphone
                      • 1 x alarm input, 1 x alarm output
                      • Edge storage
                      • RTC with built-in battery
                      • SSL v3 advanced HTTPS encryption
                      • Supports Samba network storage
                      • Multi-lingual user interface
                      • Free 32-channel NVR software  |
				        |

                      |
                           |

                    Dimensions |



                        |
                        |


                      |   |
                        |
                        |
                        |


                       |

                      Models and Technical Specifications |





							|
								 Product Image  |


  |


							|
								 Model Name  |

								 NVC660MP3 FE  |
							NVC660MP5 FE  |


							|
								 Camera Type  |

								 Panoromic Fisheye  |


							|
								 Unique Feature  |

								 WDR, IVS Pro  |


							|
								 Max Resolution  |

								 2048x1520  |
							2560x1920  |


							|
								 Video Compression  |

								 H.264/MJPEG  |


							|
								 Max Frame Rate  |

								 30fps@2048x1520  |
							30fpt@2560x1920  |


							|
								 Image Sensor  |

								 1/3” 4-megapixel CMOS  |
							1/1.8" Megapixel CMOS  |


							|
								 Lens  |

								 F2.0, 1.05mm  |
							F2.0, 1.49mm  |


							|
								 Horizontal View Angel  |

								 180°  |


							|
								 Iris  |

								 Fixed  |


							|
								 Mechanical IR-Cut Filter  |

								 Yes  |


							|
								 Audio  |

								 Yes  |


							|
								 Alarm Input / Output  |

								 Yes  |


							|
								 Edge Storage  |

								 Yes  |


							|
								 POE (Power over Ethernet)  |

								 802.3af  |


							|
								 Wireless  |

								 Yes  |
							  |


							|
								 Operating Temperature  |

								 -10°C - 50°C  |


						  Datasheet  |
						    |
						    |




                       |

                    |
