home > products > airgoggle > nvc360

Mounting | Dimensions | Related products



Datasheet Application Note

Key Features

Day and Night

Dual Sony CCD Image Sensor

Weather Vandal Resistant

Integrated IR LED Design

PTZ

Vandal Proof and IP66 Weather Resistant

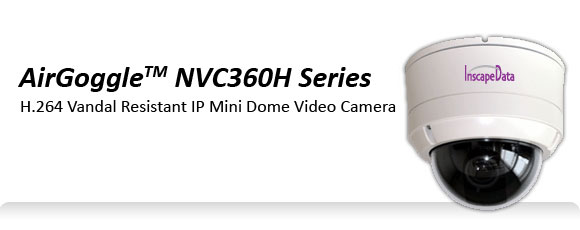

The AirGoggle NVC 360 series product is an all-in-one high performance professional IP Video dome camera for the physical security industry. It offers full D1 video resolution and efficient network real-time streaming via MPEG-4 video streaming technology. The NVC360 offers various options like Dual Sony CCD image sensor which brings the best low light picture quality in the industry with image sensitivity as low as 0.003 lux, Wide Dynamic Range, Day & Night or Integrated IR lighting . The vandal proof mechanical enclosure design can withstand impact and abuse from harsh environments. The IP 66 enclosure rating allows the camera to be used in indoor or outdoor setting. Rugged weatherproof mechanical design along with host of convenient features makes the high-performance AirGoggle
NVC360 series cameras ideal for professional security surveillance applications.

When using the LPS1000 Outdoor PoE Switch and networking with any of the AirEther Series wireless products, all the wireless devices and the cameras are networked within a single outdoor LAN (local Area Network). Iit becomes much easier to manage, integrate, install, maintain, and troubleshoot. The LPS1000 PoE Switch, based on Inscape Data's patent-protected technology,  greatly lessens challenges for outdoor LAN design, integration, and deployment.

Models

back to top^

Mounting Specifications

The following table shows the parts to include when using each specific mounting method.

Wall Mounting

Wall Mounting with Junction Box

Wall Mounting

with

Junction Box & Wiring Kit (1)

Pole Mounting

Corner Mounting

Embedded Mounting (2)

Ceiling Mounting

SDGHA001SDWM001v2

Outdoor Wall Bracket Kit



or



SDGHA001SDWM001M

Outdoor Wall Bracket Kit (3)

SDGHA001SDWM001v2

Outdoor Wall Bracket Kit

+

SDJB001SDJB001

Junction Box

SDGHA001SDWM001v2

Outdoor Wall Bracket Kit

+

SDJBPC001SDJBPC001

Junction Box with PCB and Cable

SDGHA001SDWM001v2

Outdoor Wall Bracket Kit

+

SDPA001v2SDPA001v2
Outdoor Pole Mount Adaptor

SDGHA001SDWM001v2

Outdoor Wall Bracket Kit

+

SDPA001v2SDCA001v2
Outdoor Pole Mount Adaptor

SDEM001SDEM002
Embedded Mount Bracket

SDPHM001SDPM001v2

Outdoor Ceiling Bracket Kit



or



SDPHM001SDCM001M

Outdoor Ceiling Bracket Kit (3)

(1) Wiring kit junction box for Ethernet, Power, Relay, I/O Port, RS485

(2) Using the embedded mount to hide camera body and show glass dome bubble only

(3) The mounting brackets that NVC360S- , NVC360WD- Series only work with



back to top^

Dimensions

dimension1 dimension2 dimension3

a. 100 mm
b. 45 mm
c. 25 mm
d. 77 mm



e. 156 mm
f. 42 mm
g. PT 3/4



h. 46 mm
i. 83.5 mm
j. PT 3/4
