home > products > airgoggle > nvc1000 series

Mounting | Dimensions | Related products



Models
Datasheet Application Note

Key Features

Day and Night

IR Compatible Day and Night Operation

PTZ

Automatic Continuous Scan, Tour, and Pattern Operation

IPCCTV

Simultaneous IP and CCTV Video Operation

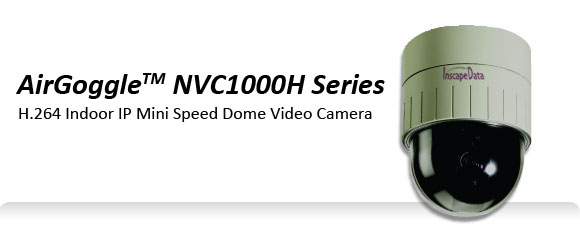

The Airgoggle NVC1000 series all-in-one high-performance professional indoor network speed dome
cameras provide superb visibility in daylight and night-time conditions. With full D1 720x480 MPEG-4
video resolution and efficient network real-time streaming, the NVC1000 series PTZ Mini Dome IP
video camera provides high quality digital video without the high demand of network bandwidth.
Standard features sets of the NVC1000 include selectable ADPCM audio, event-driven recording video
motion detection or quad external sensor inputs, pan / tilt / zoom to 165 preset location, and
integrated IP video web server.
The AirGoggle NVC1000 cameras are offered in six packages, including 18X, 26X, or 36X optical zoom
lens, filter changeable day & night, or wide dynamic digital imaging optics. The rugged mechanical
design, along with a host of convenient features, makes the high-performance AirGoggle NVC1000
series cameras ideal for professional security surveillance applications.

When you use the LPS1000 Outdoor PoE Switch and network with any of the AirEther Series Wireless products, all the wireless devices and the cameras are networked within a single outdoor LAN (local Area Network).  It becomes much easier to manage, integrate, install, maintain, and troubleshoot.  Based on Inscape Data's patent-protected technology, this new Outdoor PoE Switch greatly lessens challenges for outdoor LAN design, integration, and deployment.


Mounting Specifications

The following table shows the parts to include when using each specific mounting method.

Wall Mounting

Wall Mounting with Junction Box

Wall Mounting

with

Junction Box & Wiring Kit (1)

Pole Mounting

Corner Mounting

Embedded Mounting (2)

Ceiling Mounting

SDGHA001SDGHA001

Indoor Wall Bracket Kit

SDGHA001SDGHA001

Indoor Wall Bracket Kit

+

SDJB001SDJB001

Junction Box

SDGHA001SDGHA001

Indoor Wall Bracket Kit

+

SDJBPC001SDJBPC001

Junction Box with PCB and Cable

SDGHA001SDGHA001

Indoor Wall Bracket Kit

+

SDPA001v2SDPA001v2
Outdoor Pole Mount Adaptor

SDGHA001SDGHA001

Indoor Wall Bracket Kit

+

SDPA001v2SDCA001v2
Outdoor Pole Mount Adaptor

SDEM001SDEM001
Indoor Embedded Mount Bracket

SDPHM001SDPHM001

Indoor Ceiling Bracket Kit

(1) Wiring kit junction box for Ethernet, Power, Relay, I/O Port, RS485

(2) Using the embedded mount to hide camera body and show glass dome bubble only

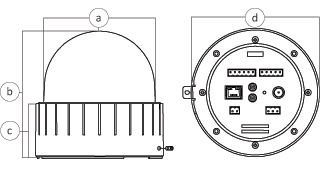

Dimensions



a. 128mm
b. 203mm
c. 121.7mm

d. 147mm
