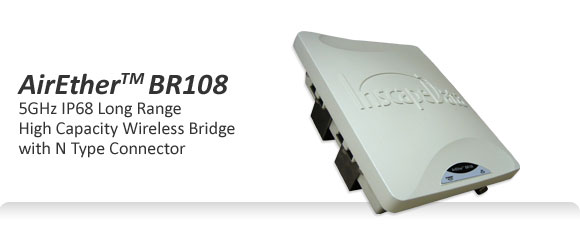

The AirEther™ BR108 is a carrier class long range outdoor wireless bridge and is an ideal outdoor wireless backhaul solution. It is protected by an IP68 certified die-cast all weather housing and lightning protector. The BR108 is also designed for a wide variety of outdoor applications and can be deployed as point-to-point and point-to-multipoint solutions. The BR108 is an ideal backhaul solution due to its low cost, superior performance, range, ease of installation and management.
The AirEther BR108 offers two data rates, based on the IEEE 802.11a mode and the IEEE802.11a turbo mode. When the bridge operates under the IEEE 802.11a mode, it supports data rates from 6 Mbps to 54 Mbps. Under the IEEE802.11a turbo mode, it supports data rates from 12 Mbps to 108 Mbps. The frequency channel for the IEEE802.11a and the IEEE802.11a turbo are across from 5.15 to 5.85 GHz..
The BR108 is an ideal long range bauckhaul wireless bridge for the following environments:
Airports
Campuses
Stadiums
Public Parks
Marinas
Beaches
Building to Building
Convention Centers
Security & Surveillance

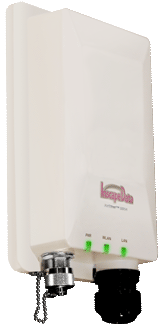

BR108
Features and Benefits
Higher Power 200mW Output
High Capacity 108mbps Data Rate
SNMP
Tri-Band 5.2/5.3/5.8 GHz operating frequency
Power Over Ethernet (PoE)
STP Bridge Redundancy
Up to 16 Point to multipoint bridge links
802.11H smart DFS bridge support
The AirEther BR108 is flexible and operates as a PtP (Point-to-Point) or PtMP (Point-to-Multi-Point) long range wireless bridge linking networks in different buildings or remote locations
MAC address-based access control with 54-bit/128-bit/ 152-bit WEP encryption for stronger security
Enhanced transmission with up to 54 Mbps or 108 Mbps under turbo mode for extended wireless data rate
Sturdy design is mechanically sealed for 100% product security under harsh weather environments and temperatures ranging from -22ºF to +180ºF (-30ºC to +70ºC)
Industrial strength mast and wall mount bracket for easy installation
Easy installation with cost effective Power over Ethernet (PoE)
Unique IP68 die-cast metal weather proof housing designed to function as a ground plane, forming a perfect radiation pattern, and improved antenna performance
